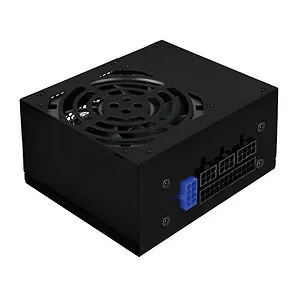

Silverstone SST-SX600-G SFX Series SX600-G 600W 80 PLUS Gold SFX Power Supply (Black)

Out of Stock
Condition: New

$172.23  $232.51
 Free Shipping for this Item

Product Overview

Specifications

  • Mfr Part Number: SX600-G
  • Features:
    • Intelligent semi-fanless operation
    • Supports standard SFX form factor and ATX via included bracket
    • High efficiency with 80 PLUS Gold certification
    • 100% modular cables
    • All cables made with flexible flat arrays
    • 600W continuous power output at 40℃ operating temperature rated for 24/7 operation
    • Class-leading single +12V rail with 50A
    • Strict ±3% voltage regulation and low ripple & noise
    • Supports dual PCI-E 8/6pin connectors
  • Type: SFX
  • Maximum Power: 600W
  • Input:
    • Voltage: 90V ~ 264V
    • Frequency Range: 47 ~ 63Hz
  • Power Factor Correction: Active PFC (PF>0.95 at full load)
  • Efficiency: 87% ~90% (20% to 100% Loading)
  • MTBF: 100,000 hours
  • Fans: Single 80mm Silent Fan
  • Noise Level: 0 ~ 40 dBA
  • Output: +3.3V @ 20A, +5V @ 15A, +12V @ 50A, -12V @ 0.3A, +5VSB @ 2.5A
  • Connectors: 1x 24/20pin Main Connector, 1x 8/4pin EPS/ATX 12V Connector, 2x 8/6pin PCI-Express Connectors, 4x SATA Connectors, 2x 4pin Peripheral Connectors, 1x 4pin Floppy Connector
  • Protection: Over Current, Over Power, Over Voltage, Over Temperature, Short Circuit
  • Color: Black (Lead-Free Paint)
  • Dimensions (WxDxH): 125.0 x 100.0 x 63.5 mm
  • Weight: 1.45 kg

Technical Specifications

Max. DC Output
600W
Power density
756W per liter
Color
BlackLead-Free Paint
combined +3.3, +5V
90W
Combined +12V
600W
Input Voltage
90V - 264V
Input Frequency Range
47Hz - 63Hz
PFC
Active PFCPF>0.95 at full load
Efficiency
87%-90%20% to 100% loading
MTBF
100,000 hours
Operating temperature
0oC - 40oC
Protection
Over current protection
Over power protection
Over voltage protection
Over Temperature Protection
Short circuit protection
No load operation
Connectors
1 x 24 / 20-Pin motherboard connector300mm
1 x 8 / 4-Pin EPS / ATX 12V connector400mm
2 x 8 / 6-Pin PCIE connector400mm / 150mm
4 x SATA connector300mm / 200mm / 100mm / 100mm
2 x 4-Pin Peripheral connector 300mm / 200mm
1 x 4-Pin Floppy connector300mm / 200mm / 200mm
Cooling System
Single 80mm silent fan
Form factor
SFX
Noise Level
0 - 40 dBA
Certification
80 PLUS Gold
Other
Includes SFX to ATX bracket for use in ATX case
GPU Support list
Compatible with ATX12V v2.4
Item Dimension (L inchxW inchxH inch)
10 x 7 x 4 Weight
4.00lb

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • SilverStone
  • SST-SX600-G
  • 844761011581
  • New
  • 4 lbs
  • 5 X 5 X 5
  • Feb 19, 2026
  • Dec 30, 2025
Product Identifiers: Brand: Silverstone • Part #: SST-SX600-G • UPC: 844761011581

Silverstone SST-SX600-G SFX Series SX600-G 600W 80 PLUS Gold SFX Power Supply (Black)
