Technical Specifications

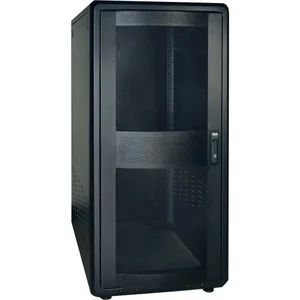

- This special version of Tripp Lite 25U SmartRack Enclosure (SR25UB) ships mounted on a "shock pallet" that features additional reinforcement and shock-absorbing material for safe loading and re-shipping - Heavy-duty ramps (included) allow enclosure to be rolled on and off the pallet during configuration - Shipping Capacity: shock-pallet supports up to 1,250 lbs. (200 lbs. SmartRack Enclosure weight + up to 1,050 lbs. of additional equipment), enabling safe loading and re-shipping - Final Installation Capacity: SmartRack Enclosure supports up to 2,500 lbs. of equipment after final installation - 4 interior vertical posts with unthreaded square hole openings - Textured powder coat finish - Massive front to rear ventilation capacity - Maximum usable internal depth of 37 inches / 94 cm (front to rear rail) - Locking, reversible and removable front door - Locking, removable side panels - Locking, removeable split rear doors - Casters and levelers - Roll through 7 foot doorways - Open bottom for cable access - Top cable access openings - Compatibility with air management accessories PHYSICAL - EXTERNAL DIMENSIONS: 50.49 x 24 x 42 (H x W x D), Max front to rear rail dimension = 37 inches - EXTERNAL DIMENSIONS: 128.24 x 60.96 x 106.68 (H x W x D), Max front to rear rail dimension = 94 cm - Shipping Dimensions (HWD/in): 53 x 27 x 45
