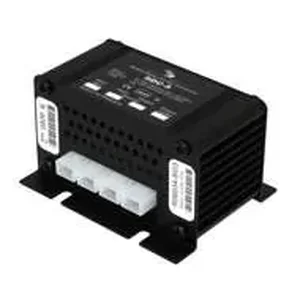

Samlex America SDC-5 Samlex 5A Non-Isolated 24V to 12V DC Converter

5A Non-Isolated 24V to 12V DC-DC Converter

This high-efficiency switch-mode step-down DC-DC converter transforms an input voltage of 24 VDC (nominal range 20 VDC to 35 VDC) into a regulated output voltage of 12 VDC (13.8 VDC) at 5 Amps. The SDC-23 model is designed for non-isolated operation, meaning there is no galvanic isolation between the input and output, making it suitable for negative ground systems. Its features include overvoltage and short-circuit protection, temperature-compensated current limiting, additional output-side overvoltage protection, and input-side protections against overvoltage, transients, and reverse polarity. The SDC-23 is tailored for heavy-duty applications.

Features:

• Advanced switch-mode design
• Mountable in various locations
• Compact and lightweight
• Reverse polarity protection included
• High efficiency for energy saving
• Cycle-by-cycle current limiting
• Integrated overvoltage protection
• Short circuit protection incorporated

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting
• AM/FM sound systems
