Technical Specifications

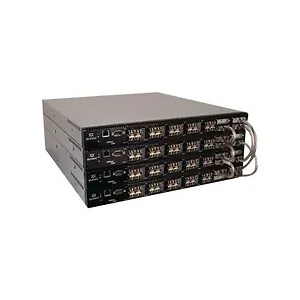

SANBOX 5800V FABRIC SWCH INCL 8GB SFP+ OPTICS EMC
Prepare your infrastructure for tomorrow's requirements - without paying more today. The SANbox 5800V series offers unique phased migration to 8 GB Fiber Channel speeds, delivering cost-effective performance and revolutionary ease of use at every stage. QLogic's field-proven modular backbone architecture, a key component of the QLogic SAN lifecycle management framework, offers a powerful answer to this dual request, allowing customers to build SANs that will last far into the future while simultaneously providing the lowest cost of entry. SANbox 5800V reduces both capital expense (CAPEX) and operating expense (OPEX) through all phases of technology roll-out.
*
MAIN SPECIFICATIONS
Product Description QLogic SANbox 5800V - switch - desktop
Device Type Switch - stackable
Enclosure Type Desktop - 1U
Ports 4 x XPAK
Remote Management Protocol SNMP, HTTP
Features Full duplex capability, auto-negotiation, trunking, manageable, IPv6 support
Power AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH) 17 in x 19.7 in x 1.7 in
Weight 18.1 lbs
General
Device Type Switch - stackable
Enclosure Type Desktop - 1U
Ports 4 x XPAK
Fibre Channel FC-SW-2
Remote Management Protocol SNMP, HTTP
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS
Features Full duplex capability, auto-negotiation, trunking, manageable, IPv6 support
Expansion / Connectivity
Interfacesb x Fibre Channel - LC x 2 10Base-T/100Base-TX - RJ-45 - management RS-232 - 9 pin D-Sub (DB-9) - management 4 x XPAK
Power
Power Device Power supply - internal
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 73 Watt
Miscellaneous
Width 17 in
Depth 19.7 in
Height 1.7 in
Weight 18.1 lbs
Compliant Standards CE, UL, TUV, cUL, EN 60950, CB, RoHS, IEC 60950-1, GOST-R
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90%
