Product Overview

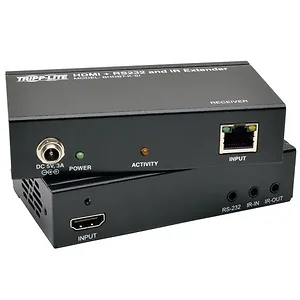

The BHDBT-K-SI HDBaseT Class B (HDBaseT-Lite) Extender Kit allows you to transmit HDMI audio and video, RS-232 serial and IR Remote Control signals up to 230 feet over a single Cat5e/6/6a cable, including a 1920 x 1080 (1080p) signal at 60Hz. Or you can extend an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) video signal up to 130 feet. Add up to five Tripp Lite BHDBT-TR-SI transceivers (sold separately) between the transmitter and receiver units to further expand the range up to 780 feet (3840 x 2160) or 1,380 feet (1080p) with a monitor connected via HDMI port to each transceiver.
Technical Specifications
AC Adapter
Input: 100-240V, 50/60Hz, 0.5A
Output: 5V, 3A Included Mounting Accessories
Yes Color
Black ENVIRONMENTAL
Operating Temperature Range: 0 to 40 C (32 to 104 F)
Storage Temperature Range: -20 to 60 C (-4 to 140 F)
Relative Humidity: 20 to 90% COMMUNICATIONS
Max 1024 x 768 Range (ft) : 230
Max 480P Range (ft) : 230
Max 1440 x 900 Range (ft) : 230
Max 1080i Range (ft) : 230
Max 1080P Range (ft) : 230
Max 1920 x 1440 Range (ft) : 130
Max 2560 x 1600 Range (ft) : 130
Max 4K UHD Range (ft) : 130
Max 480i Range (ft) : 230
Max 640 x 480 Range (ft) : 230
Max 800 x 600 Range (ft) : 230
Max 1600 x 1200 Range (ft) : 230
Max 1920 x 1200 Range (ft) : 130
Max 2048 x 1536 Range (ft) : 130
Max 720P Range (ft) : 230 CONNECTIONS
Ports: 1
Side A - Connector 1: HDMI (FEMALE)
Side A - Connector 2: RJ45 (FEMALE)
Side B - Connector 1: HDMI (FEMALE)
Side B - Connector 2: RJ45 (FEMALE)
Side B - Connector 3: DB9 (MALE) CERTIFICATIONS
Approvals: CE, FCC, RoHS, REACH Package Includes
Transmitter unit
Receiver unit
IR-IN cable
IR-OUT cable
3.5 mm Male to DB9 Female adapter cable
3.5 mm Male to DB9 Male adapter cable
(2) External Power Supplies with NEMA 1-15P Plug(Input: 100240V, 50/60 Hz, 0.5A Output: 5V, 3A)
Mounting hardware
Owners manual Item Dimension (L inchxW inchxH inch)
3 x 9 x 3
Weight
1.00 lb
Warranty Information
1 year limited
