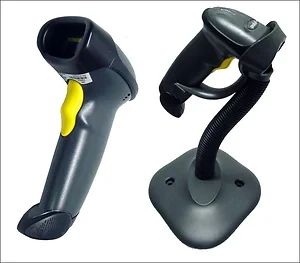

Zebra LS2208-7AZR0100DR Motorola Symbol LS2208-7AZR0100DR LS 2208 HandHeld BarCode Scanner With Stand Serial RS-232

The LS2208-7AZR0100DR is a handheld barcode scanner manufactured by Zebra Technologies. It is a general-purpose scanner designed for retail, healthcare, and light industrial applications.

Product Description

The Zebra LS2208 handheld barcode scanner delivers performance features at an affordable price to make your checkout experience better every day. From the retail point-of-sale and backroom to patient bedside or school book checkout, the LS2208 provides fast, reliable scanning technology in a durable, lightweight form factor, delivering enhanced productivity and efficiency while reducing your total cost of ownership. It offers aggressive scanning capabilities and a wide working range, accurately capturing data from 1D barcodes. Its plug-and-play installation and intuitive design make it easy to deploy and use, minimizing training time and maximizing productivity.

Product Specifications

• Scan Technology: Linear Imager
• Decode Capability: 1D
• Connectivity: RS232
• Scan Rate: 100 scans per second
• Light Source: 650 nm visible laser diode
• Operating Temperature: 32? F to 122? F / 0? C to 50? C
• Storage Temperature: -40? F to 158? F / -40? C to 70? C
• Humidity: 5% to 95% relative humidity, non-condensing
• Drop Specification: Withstands multiple 5 ft./1.5 m drops to concrete
• Ambient Lighting Tolerance: Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting conditions
• Voltage: 5VDC +/- 10%
• Current: 130 mA typical, 175 mA max
• Color: Twilight Black
• Interface: RS-232
• Part Number: LS2208-7AZR0100DR

• Connectivity Technology: Cable
• Bar Code Symbology Supported:
• UPC/EAN
• UPC/EAN Supplementals
• UCC/EAN 128
• Code 39
• Code 39 Full ASCII
• Code 39 TriOptic
• Code 128
• Code 128 Full ASCII
• Codabar
• Interleaved 2 of 5
• Discrete 2 of 5
• Code 93
• MSI
• Code 11
• IATA
• RSS Variants
• Chinese 2 of 5
• Light Source: Laser
• Image Sensor: Linear
• Scan Rate: 100 scan/s
• Scan Pattern: Bi-directional
• Host Interface: Multi-interface
• Color: Black
• Height: 6.0"
• Width: 2.5"
• Depth: 3.3"
• Weight (Approximate): 5.15 oz
• Green Compliant: Yes
• Green Compliance Certificate/Authority: RoHS
