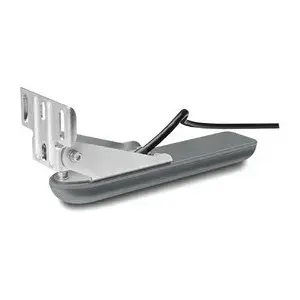

Garmin GT30-TM Transom
Sidevu/Downvu Transducer
Model: 010-01961-00Perfect for the shallow water fisherman who want CHIRP ClearVu and CHIRP SideVu scanning sonar, this transom mount transducer consistently displays clear definition of objects, structure and fish below and to each side of the boat.
The 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVu) and 500 ft left and right (SideVu); an operating frequency of 455/800 kHz; and a 0 to 70 transom angle. Pair it with your GCVTM 10 black box sonar.
Transducer comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
Specifications| 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) | |
| Power | |
| ClearVu/SideVu | 500 W |
| Beamwidth | |
| ClearVu | 1.4 degx53 deg @ 455 kHz and 0.8 degx30 deg @ 800 kHz |
| SideVu | 1.1 degx53 deg @ 455 kHZ and 0.7 degx30 deg @ 800 kHz |
| Maximum depth | |
| ClearVu | 750 ft |
| SideVu | 500 ft. |
| Depth/Speed/Temperature | Depth and Temperature |
| Number of pins | 12-pin |
| Cable length | 20 ft. |
| Supported deadrise/Transom angles | 0 deg-70 deg degree transom |
Garmin Usa, Inc 010-01961-00 Garmin GT30-TM Transom Sidevu/Downvu Transducer
