SKU: Z7OWIQN2BE |  Mfg. Part: 520T-BLD  | UPC: 611679360144  |
 1 Reviews  |     Share

Furuno Usa Inc. 520T-BLD Furuno 520T-BLD Bronze Thru Hull B117 Depth/Temp 10-Pin

2 Available
Condition: New

$229.73  $310.14
 Free Shipping for this Item

Product Overview

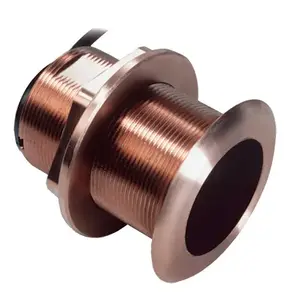

Furuno 520T-BLDLow Profile Broze Thru-Hull Depth and Temp Transducer - 10-Pin

Model: 520T-BLD
  • depth and temperature
  • 600 W
  • 50 kHz with a wide 45 deg beamwidth for performance to 353 m (1,200 feet)
  • 200 kHz with a 12 deg beamwidth for performance to 206 m (700 feet)
  • Right-angle cable exit saves space and protects transducer if stepped on
  • Included rubber washer allows tightening of the hull nut to irregular hull surfaces
  • Low-profile, bronze housing has minimal drag
  • Plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials and deadrise angles
  • 30 Foot Cable with 10-Pin Connector
Specifications
Weight
0.9 kg (2.0 lb.)
Recommended Boat LengthUp to 8 m (25 feet)
Hull MaterialFiberglass or wood
Hull DeadriseBest performance through 7 deg. Can accommodate up to a 12 deg.
Acoustic WindowUrethane
Hole Diameter 51 mm (2)
"

Technical Specifications

520T-BLD Bronze Thru-Hull Low Profile 600W - 10-Pin


Airmar B117 Housing Style Transducer

Features:

  • 600 Watts
  • 50/200 kHz
  • 45/15 degree Beam Angles
  • Low Profile Bronze Thru-Hull with Temperature
  • 30 Foot Cable with 10-Pin Connector

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • FURUNO USA INC.
  • 520T-BLD
  • 611679360144
  • New
  • 2 lbs
  • 5 X 5 X 5
  • Apr 11, 2026
  • Apr 08, 2026
Product Identifiers: Brand: Furuno Usa Inc. • Part #: 520T-BLD • UPC: 611679360144 • Category: Transducer Probes

Furuno Usa Inc. 520T-BLD Furuno 520T-BLD Bronze Thru Hull B117 Depth/Temp 10-Pin

Reviews for Furuno Usa Inc. 520T-BLD

$229.73
