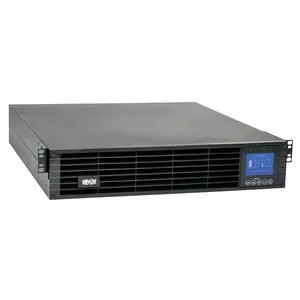

On-line double-conversion UPS provides pure sine wave AC output to server and network equipment in data centers and computer rooms.
- UPC Code: 037332180742
- UPS Type: On-Line
- Input Phase: Single-Phase
- Rated input current (Maximum Load): 14.97A
- Nominal Input Voltage(s) Supported: 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
- UPS Input Connection Type: L6-20P
- UPS Input Cord Length (ft.): 10
- Recommended Electrical Service: 208/240V 20A
- Output Capacity (VA): 3000
- Output Capacity (kVA): 3
- Output Capacity (Watts): 2700
- Output Capacity (kW): 2.7
- Output Capacity Details: DE-RATING INFORMATION: Max output in Frequency Conversion mode is reduced to 1890 watts for 208/220/230/240V output voltages; Max output is reduced to 2160W at 200V output voltage in all operating modes OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% for 3 minutes, 150% for 30 seconds and >150% for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits).
- Power Factor: 0.9
- Crest Factor: 3:1
- Nominal Voltage Details: Nominal output voltage is user configured on first power-on
- Frequency Compatibility: 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
- Frequency Compatibility Details: Output frequency matches input nominal on startup; Output capacity de-rates by 30% during frequency conversion operation
- Output Voltage Regulation (Line Mode): +/- 2%
- Output Voltage Regulation (Economy Line Mode): +/- 10%
- Output Voltage Regulation (Battery Mode): +/- 2%
- Load Management Receptacles: Two switchable outlet load banks (2 NEMA 6-15/20R outlets per bank)
- Output AC Waveform (AC Mode): Pure Sine wave
- Output AC Waveform (Battery Mode): Pure Sine wave
- Nominal Output Voltage(s) Supported: 200V; 208V; 220V; 230V; 240V
- Output Receptacles: (6) 6-15/20R; (2) L6-20R
- Individually Controllable Load Banks: Yes
- Battery Type: Valve Regulated Lead Acid (VRLA)
- Runtime Full Load (min.): 5 min. (2700W)
- Runtime Half Load (min.): 13.5 min. (1350W)
- Expandable Runtime: Yes
- External Battery Pack Compatibility: BP72V15-2U (limit 1); BP72V28RT-3U (multi-pack compatible); BP72V18-2US (multi-pack compatible)
- DC System Voltage (VDC): 72
- Battery Recharge Rate (Included Batteries): 3.0 hours from 10% to 90% (typical, full load discharge)
- Battery Access: Front panel battery access door
- Internal UPS Replacement Battery Cartridge: RBC72S
- Battery Replacement Description: Hot-swappable, replaceable batteries
- Voltage Regulation Description: Online, double-conversion power conditioning
- Overvoltage Correction: 2% output voltage regulation during overvoltages to 288
- Undervoltage Correction: 2% output voltage regulation during undervoltages to 160V (100% load), 130V (70% load), 100V (30% load)
- Front Panel LCD Display: Interactive front-panel LCD interface reports UPS operating mode, detailed UPS status and site-power information; LCD interface also enables a variety of advanced UPS setup and configuration options
- Switches: 5 front panel switches: On/Off, Up, Down and Escape
- Alarm Cancel Operation: Power-fail alarm can be silenced by following on-screen prompts
- Audible Alarm: Audible alarm indicates power failure, low battery, overload and fault
- LED Indicators: 4 front panel LEDs: AC input (green), AC output (green), Battery (yellow), Fault (red)
- UPS Dataline Suppression Details: Single line dialup / network dataline protection included
- EMI / RFI AC Noise Suppression: Yes
- AC Suppression Joule Rating: 570
- AC Suppression Response Time: Instantaneous
- Primary Form Factor: Rackmount
- Rack Height: 2U
- Cooling Method: Fan
- Included Mounting Accessory Description: 4 post installation accessories included
- Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount
- Installation Form Factors Supported with Optional Accessories: 2 post rackmount ( 2POSTRMKITWM ); Tower ( 2-9USTAND )
- Minimum Required Rack Depth (inches): 28
- Minimum Required Rack Depth with External Battery Pack (cm): 77
- Minimum Required Rack Depth with External Battery Pack (in.): 30.25
- Minimum Required Rack Depth without External Battery Pack (cm): 74
- Minimum Required Rack Depth without External Battery Pack (in.): 29.25
- Primary UPS Depth (mm): 616
- Primary UPS Height (mm): 88
- Primary UPS Width (mm): 438
- Shipping Dimensions (hwd / in.): 9.45 x 23.62 x 29.92
- Shipping Weight (lbs.): 86.00
- UPS Housing Material: Metal
- UPS Power Module Dimensions (hwd, in.): 3.46 x 17.24 x 24.25
- UPS Power Module Weight (kg): 32.12
- UPS Power Module Weight (lbs.): 70.81
- Unit Weight (lbs.): 70.8100
- Operating Temperature Range: 32? to 104?F (0? to 40?C)
- Storage Temperature Range: 5? to 122?F (-15? to 50?C)
- Relative Humidity: 5 to 95%, non-condensing
- AC Mode BTU / Hr. (Full Load): 933
- AC Economy Mode BTU / Hr. (Full Load): 588
- Battery Mode BTU / Hr. (Full Load): 1399
- AC Mode Efficiency Rating (100% Load): >90%
- AC Economy Mode Efficiency Rating (100% Load): >95%
- Audible Noise: <50dB at front side 1M
- Operating Elevation (m): Up to 3000m
- Network Management Cards: SNMPWEBCARD; WEBCARDLX
- Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 plus assignable contact closure pin functions for On-battery, On bypass, Output-on and Low-battery conditions and remote Shutdown, Output-off, Reboot and Power-toggle operations
- PowerAlert Software: For local monitoring via the UPS's built-in communication ports, download PowerAlert software at https://tripplite.eaton.com/products/power-alert
- Communications Cable: USB and DB9 cabling included
- WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Network Management Card Description: Network management card optional
- Communications Interface: Contact closure; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)
- Transfer Time: No transfer time (0 ms.) in online, double-conversion mode; 4 ms. transfer time during economy mode operation
- Low Voltage Transfer to Battery Power (Setpoint): 160V (100% load), 140V (66% load), 120V (33% load)
- High Voltage Transfer to Battery Power (Setpoint): 288V
- Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
- High Availability UPS Features: Auto Probe Monitoring and Reboot (requires WEBCARDLX); Automatic inverter bypass; Hot swappable batteries; Remote management; Surge/noise protection; Zero transfer time
- Green Energy-Saving Features: High efficiency economy mode operation; Individually controllable load banks
- Grounding Details: Back panel grounding lug included
- UPS Applications: Mission Critical Applications
- Product Certifications: CSA (Canada); NOM (Mexico); UL 1778
- Product Compliance: RoHS; CE (Europe); ENERGY STAR Qualified; FCC Part 15 Class A (USA)
- Product Warranty Period (Worldwide): 2-year limited warranty
- Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance
