2 Available
Condition: New

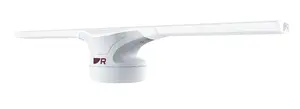

Raymarine 110 Watt Cyclone Pedestal Only
Model: E70621Pedestal Only for 110 Watt Cyclone
Specifications| Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc | |
| Power consumption (typical) | 95 Watts |
| Power consumption (max) | 195 Watts |
| Power consumption (standby) | 28 Watts |
| Maximum range scale | 96 nm |
| Boot up time | 40 seconds |
| Standby to transmit | less than 5 seconds |
| Waterproof rating | IPX6 |
| Operating temperature range | -25 degC to +55 degC (-13 degF to 131 degF) |
| Humidity | Up to 93% at 40 degC (104 degF) |
| Maximum wind speed | 100 Kts |
| Power connection | 1x Power connector |
| Data connection | 1x RayNet connector |
| Transmitter frequency | 9370, 9400, 9430 MHz (User Selectable) |
| Peak power output | 110 Watts |
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB |
| Pedestal | |
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) |
| Weight | 16 Kg |
Teledyne Flir Maritime Us, Inc E70621 Raymarine 110 Watt Cyclone Pro Pedestal Only
