SKU: YRC5BK2K76 |  Mfg. Part: 6008-BSS  | UPC: 632085060084  |  0 Reviews  |     Share

Navico Group Americas Llc 6008-BSS Blue Sea M-Series Battery Switch On/Off/On with K

6 Available
Condition: New

$55.93  $75.51
 Free Shipping for this Item

Product Overview

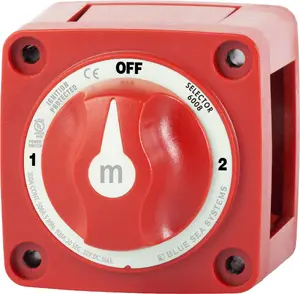

Blue Sea Systems m-Series Selector 3 Position Battery Switch - Red

Model: 6008-BSS
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8 (M10) ring terminals
  • 7/8 in (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Isolating cover with snap-on sections protects rear contacts
  • Case design allows surface or rear panel mounting
  • Waterproof - rated IP66 from water projected in powerful jets
  • One-piece stainless flange nuts ensure safe and secure connections
  • Breakout tabs allow wire access in any direction
  • Ignition protected-safe for installation aboard gasoline powered boats

Switches a single battery to a single load group.

Specifications
Switch Type
Selector 3 Position
ColorRed
Switch Positions3
Battery CombineNo
Alternator Field DisconnectNo
Maximum Voltage32vDC
Stud Size3/8 in
Terminal Stud Torque120 in-lb (13.56 Nm)
Continuous Rating300A
Intermittent Rating500A (5 min)
Cranking Rating 30 sec900A
Battery Inputs2
Cable Clearance For 4/0 AWG Cables1.12in (28.45 mm)
Cable Size to Meet Ratings4/0 AWG (120mm2)
Mounting HolesAccept #10 Screw
Stud MaterialTinned Copper
Stud Torque120 in-lb (13.56 Nm)
Terminal Stud Size3/8 in - 16 (M10)
"

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • NAVICO GROUP AMERICAS LLC
  • 6008-BSS
  • 632085060084
  • New
  • 0.77 lbs
  • 5 X 5 X 5
  • Mar 26, 2026
  • Mar 26, 2026
Product Identifiers: Brand: Navico Group Americas Llc • Part #: 6008-BSS • UPC: 632085060084
