SKU: YL9YMCFZJ8 |  Mfg. Part: STC ST121HDBTSC  | UPC: 065030879200  |  0 Reviews  |     Share Make an offer

Startech STC ST121HDBTSC .com Multi-Input HDBaseT Extender Kit with Built-In Switch and Video Scaler - 4 Input Device -

Pre Order
Expected availability: 1-2 weeks
Condition: New

$1,145.58  $1,546.53
Free Shipping for this Item

Product Overview

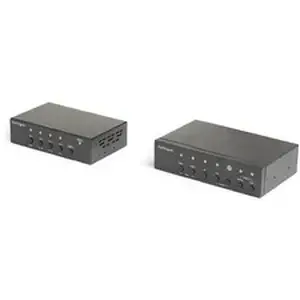

StarTech.com Multi-Input HDBaseT Extender Kit with Built-In Switch and Video Scaler

Technical Specifications

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:ST121HDBTSC
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Multi-Input HDBaseT Extender Kit with Built-In Switch and Video Scaler
Marketing Information:

This multi-input HDBaseT™ extender kit extends your A/V signals to a remote location up to 230 ft. (70 m) away. It features a built-in switch and scaler, so you can choose which video source is output from four independent video sources (2 x HDMI, 1 x VGA and 1 x DisplayPort).

Seamless Integration and Operation

The HDBaseT extender's built-in converter switch lets you connect two HDMI sources, a VGA source, and a DP source to the same remote and local HDMI display. You don't need adapters or scalers, or a video switch.

Along with manually switching your video source with easy-to-use buttons, the video extender ensures hassle-free operation with two auto-switching modes: auto-detect switching, which detects and selects a newly connected device, and priority selection, which lets you choose which port is activated by default, for automatic switching.

Built-In Video Scaling

This HDBaseT extender features a built-in scaler that scales the image to 1080p, so you can rest assured your HDMI display will intuitively work with any source that's connected through it. Scaling is easy to do, with an intuitive OSD that's accessible using buttons on the remote receiver. Newer HDMI displays no longer support legacy resolution video signals. Without support for these common VGA resolutions, your source may not work with your new HDMI display.

High-Definition 1080p Video at 230 Feet (70 Meters)

The extender kit maintains your HD picture quality, even at 230 ft. (70 m) away from your video source, ensuring you can provide the best possible viewing experience.

The ST121HDBTSC is backed by a 2-year StarTech.com warranty and free lifetime technical support.


Packaged Quantity:1
Product Type:Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology:Wired
Number of Input Devices Supported:4
Number of Output Devices Supported:1
Maximum Operating Distance:229.66 ft
Video
Graphics Modes:WUXGA
Maximum Video Resolution:1920 x 1200
Interfaces/Ports
Network (RJ-45):Yes
HDMI In:Yes
HDMI Out:Yes
VGA In:Yes
DisplayPort:Yes
Number of Network (RJ-45) Ports:2
Number of HDMI Inputs:2
Number of HDMI Outputs:2
Number of VGA Inputs:1
Media & Performance
Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 6
Physical Characteristics
Color Family:Black
Product Color:Black
Transmitter Height:2.60"
Transmitter Width:2.40"
Transmitter Depth:4.20"
Receiver Height:2.60"
Receiver Width:2.40"
Receiver Depth:4.20"
Form Factor:Desktop
Transmitter Weight (Approximate):4.41 lb
Receiver Weight (Approximate):4.41 lb
Miscellaneous
Package Contents:
  • 1 x HDBaseT Transmitter
  • 1 x HDBaseT Scaler Receiver
  • 1 x Remote Control
  • 1 x RJ-11 to RS-232 Adapter
  • 1 x CAT5 Cable
  • 1 x RJ-11 Cable
  • 2 x Sets of Mounting Brackets
  • 1 x Universal Power Adapter (NA/JP, EU, UK, ANZ)
  • 1 x IR Blaster
  • 1 x IR Receiver
  • 2 x Sets of Rubber Feet
  • 1 x Quick-Start Guide

Country of Origin:Taiwan
TAA Compliant:Yes
Environmentally Friendly:Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty:2 Year

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • STARTECH
  • STC ST121HDBTSC
  • 065030879200
  • New
  • 1 lbs
  • 5 X 5 X 5
  • Mar 28, 2026
  • Mar 28, 2026
  • Taiwan
Product Identifiers: Brand: Startech • Part #: STC ST121HDBTSC • UPC: 065030879200
