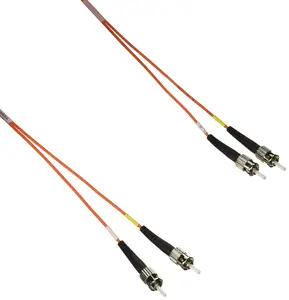

Tripplite N302-10M Tripp Lite, Fiber Patch Cable, Duplex Multimode, 62.5/125, ST, 33FT

Premium PVC 62.5/125um multimode patch cables

• UPC Code: 037332119315
• Technology: Multimode
• Optical Mode: OM1
• Cable Jacket Color: Orange
• Connector Color: Black
• Cable Jacket Material: LSZH
• Cable Jacket Rating: OFNR
• Clad Diameter (microns): 125
• Core Diameter (microns): 62.5
• Number of Fibers: 2
• Cable Length (ft.): 32.8
• Cable Length (in.): 393.7
• Minimum Bend Radius: 20 mm (Dynamic); 10 mm (Static)
• Shipping Dimensions (hwd / in.): 9.00 x 7.00 x 0.50
• Shipping Weight (lbs.): 0.31
• Fiber Cable Length: 10M (32.8 ft)
• Operating Temperature Range: -4? to 140?F (-20? to 60?C)
• Storage Temperature Range: -4? to 140?F (-20? to 60?C)
• Operating Humidity Range: 5% to 85% RH, Non-Condensing
• Storage Humidity Range: 35% to 65% RH, Non-Condensing
• Attenuation @ 850NM: 3.0 dB/km
• Insertion Loss: ≤ 0.20 dB
• Side A - Connector 1: ST DUPLEX (MALE)
• Side B - Connector 1: ST DUPLEX (MALE)
• Endface Polish: PC
• Product Compliance: RoHS; REACH
• Product Warranty Period (Worldwide): Lifetime limited warranty
