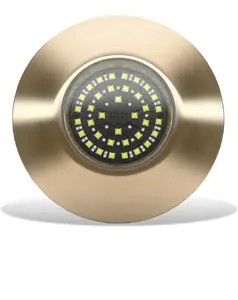

Lumishore SUPRA TIX804 Interchageable Thru Hull Blue/White LED
Model: SUPRA TIX804 / 010-04527-00The TIX804 produces an incredible 13,500 fixture lumens and an ultra-wide 110 deg beam angle, to achieve a beautiful halo of light around the yacht. The best choice for those who want full power dual-colored lights without sacrificing brightness!
Available in blue and white. You can easily switch between colors, fade colors, adjust brightness, and strobe in two speeds.
The TIX804 is controlled by the SUPRA i-Connect Hub & Switch, or directly from your compatible MFD and/or optional Lumishore Display, when you add the SUPRA Bridge Module.
TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.
Suitable for transom, side and bottom mounting.
Specifications| DUAL COLOR (BLUE & WHITE) | |
| LUMENS | 30,375 |
| VERIFIED FIXTURE LUMENS (WHITE) | 13,500 |
| NUMBER AND TYPE OF LED | White - 36 x 10W, Blue - 48 x 3W |
| LED POWER - HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 110 deg |
| DRIVER | Multi-Channel Internal Driver |
| SUPPLY VOLTAGE | 12/24 V DC |
| MAX CURRENT DRAW | 8.8A/4.4A |
| HOUSING TYPE | MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS | i-CONNECT HUB & SWITCH OR YOUR MFD WITH THE SUPRA BRIDGE |
| LIGHTS SYNCHRONIZED | YES |
| BRIGHTNESS ADJUST | YES |
| STROBE | YES |
| SYNCHRONIZED STROBE | YES |
| FADE MODE | YES |
| SYNCHRONIZED FADE MODE | YES |
| WARRANTY | 3 YEARS |
Garmin Usa, Inc 010-04527-00 Lumishore SUPRA TIX804 Interchageable Thru Hull Blue/White LED
