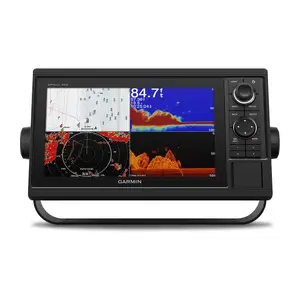

Garmin GPSMAP(R) 1042xsv 10-inch 10-inch Chartplotter/Sonar Combo Is All-in-1 Solution
Model: 010-01740-50Experience an advanced all-in-one solution with our 10 in GPSMAP(R) 1042xsv keyed combo. It features a large, bright screen coupled with a keypad interface and multifunction control knob. It comes with built-in support for Garmin CHIRP sonar along with CHIRP ClearVuTM and CHIRP SideVuTM scanning sonars. The combo also supports PanoptixTM and LiveScopeTM sonar products and a wide range of other transducers (sold separately). Use built-in Wi-Fi(R) technology to pair with the free ActiveCaptain(R) smartphone app for access to the OneChartTM feature, smart notifications, software updates and more. Garmin QuickdrawTM Community data and more. Garmin Marine Network support allows sharing of sonar, maps, user data, radar, IP cameras and live sonar among multiple units. Plus, there's NMEA 2000(R) and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors. These units also include integrated ANT(R) connectivity support for use with compatible quatix(R) smartwatches, the gWindTM Wireless 2 transducer, GNXTM Wind marine instrument and wireless remote controls (sold separately). Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations.) Plus, there's support for optional Garmin Navionics Vision+TM premium map content. The combo also includes Quickdraw Contours software and the Quickdraw Community on our Garmin ConnectTM online network. See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury(R) engines by using the SmartCraft(R) Connect gateway.
Specifications| 12.5 x 7.3 in x 2.7 in (318 x 185 x 69 cm) | |
| Display size | 8.8 in x 4.9 in (224 x 125 cm) |
| Display resolution | 1024 x 600 |
| Display type | WSVGA display |
| Weight | 4.1lbs |
| Water rating | IPX7 |
| Power consumption | Max power usage at 10 Vdc: 32.4 W |
| Antenna | Internal or external over NMEA 2000 |
| Mounting options | Bail or flush |
| Receiver | 10 Hz high-sensitivity |
| Garmin Marine NetworkTM ports | 2 |
| Preloaded maps | Garmin Navionics+ coastal and inland water charts for the U.S. and Canada |
| Accepts data cards | 2 SDTM cards |
| Waypoints | 5 |
Garmin Usa, Inc 010-01740-50 Garmin GPSMAP1042XSV 10in Combo No Tranducer US and Canada GN+
