SKU: XFK2V9MMM9 |  Mfg. Part: 5052-BSS  | UPC: 632085050528  |  0 Reviews  |     Share

Navico Group Americas Llc 5052-BSS Blue Sea ST CLB Circuit Breaker Block - 6 position with Negative Bus

3 Available
Condition: New

$64.00  $86.40
 Free Shipping for this Item

Product Overview

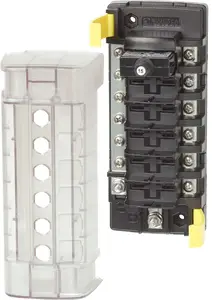

Blue Sea ST CLB Circuit Breaker Block - 6 Position with Negative Bus

Model: 5052-BSS
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover
  • Accepts square labels

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

Specifications
Circuits
6
Maximum Amperage100A (per block)
32A (per circuit)
Maximum Voltage32V DC
Negative Bus#10-32 Stud
Positive Bus#10-32 Stud
SourceCommon Source
Minimum Operating Temperature-10 deg C
Maximum Operating Temperature60 deg C
Mounting Centers5.63in (143 mm)



Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • NAVICO GROUP AMERICAS LLC
  • 5052-BSS
  • 632085050528
  • New
  • 0.75 lbs
  • 5 X 5 X 5
  • Mar 26, 2026
  • Mar 26, 2026
Product Identifiers: Brand: Navico Group Americas Llc • Part #: 5052-BSS • UPC: 632085050528
