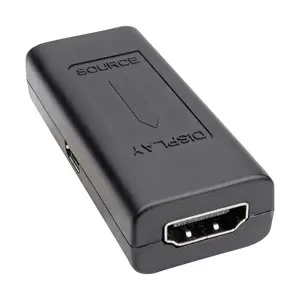

Tripp Lite's B122-000 HDMI Signal Extender increases the distance a 1080p @ 24Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16-ft. (4.88 m). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 24Hz, as well as a maximum distance of 150-ft. (45.72 m) from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75-ft. (22.86 m), use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100-ft. (30.5 m) are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50-ft. (15.24 m). A 3D signal can be extended up to 125-ft. (38.1 m) using 24Awg HDMI cable. Simply connect the longer cable between the source and the B122-000, and the shorter cable (16-ft. (4.88 m) or less) between the adapter and the monitor. Software or drivers are not required. HDCP compliant. Compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
- UPC Code: 037332133144
- Product Type: Signal Booster
- Technology: HDMI
- Video Input: HDMI (FEMALE)
- Video Output: HDMI (FEMALE)
- Number of Monitors Supported: 1
- Video Ports: HDMI (FEMALE)
- Video Ports Details: HDMI 1.4; HDCP 1.4
- Resolutions Supported: 1920 x 1200 (1080p) @ 24Hz, up to 150 ft.
- Max Supported Video Resolution: 1920 x 1200 @ 24Hz
- Max 720P Range (ft): 150
- Max 1080P Range (ft): 150
- Max 1280 x 720 (720p) Range (ft): 125
- Max 1920 x 1080 (1080p) Range (ft): 125
- Max 1920 x 1200 Range (ft): 125
- Signal Range (ft): 150
- Signal Range (m): 45.72
- Recommended Cabling: 24 AWG
- Max Supported Color Depth: 24-bit True Color
- HDR Support: No
- 3D Video Supported: Yes
- Chroma Sub Sampling: 4:4:4
- Maximum Signal Range (ft): 150
- Maximum Signal Range Details: Extend a 1080p @ 24Hz (or 1920 x 1200) HDMI signal up to 150-ft. (45.72 m) from the source
- Audio Ports: HDMI (FEMALE)
- Audio Ports Details: HDMI (Female) port allows for pass-through audio
- Audio Input: HDMI
- Audio Output: HDMI
- Audio Specification: Pass-through audio
- Product Length (in.): 2.362
- Product Length (cm.): 6
- Product Length (ft.): 0.197
- Product Length (m.): 0.06
- Power Source Type: USB
- Power Source: Unit (Optional)
- Power Over Cable (PoC) Support: No
- Color: Black
- Material of Construction: Plastic (PC)
- Included Mounting Accessories: No
- Number of Displays: 1
- Form Factor/Mounting Options: Box
- Shipping Dimensions (hwd / in.): 1.30 x 6.14 x 4.80
- Shipping Weight (lbs.): 0.03
- Unit Dimensions (hwd / in.): 2.360 x 0.600 x 1.020
- Unit Packaging Type: Box
- Unit Weight (lbs.): 0.03
- Housing: Plastic
- Operating Temperature Range: 32? to 104?F (0? to 40?C)
- Storage Temperature Range: 5? to 122?F (-15? to 50?C)
- Relative Humidity: 0% to 85% RH, Non-Condensing
- Max 1024 x 768 Range (ft): 150
- Signal Range (ft.): 150
- Max 480P Range (ft): 153
- Max 1440 x 900 Range (ft): 150
- Max 1080i Range (ft): 150
- Max 480i Range (ft): 153
- Max 640 x 480 Range (ft): 150
- Max 800 x 600 Range (ft): 150
- Max 1600 x 1200 Range (ft): 150
- EDID Compatible: Yes
- IR Remote Extension Support: No
- RS-232 Serial Extension Support: No
- Consumer Electronics Control (CEC) Supported: Yes
- Number of Ports: 1
- Side A - Connector 1: HDMI (FEMALE)
- Side A - Connector 2: MICRO-USB B (FEMALE)
- Side B - Connector 1: HDMI (FEMALE)
- 10/100 Ethernet Extension Support: No
- Built-In Equalizer: No
- HDCP Specification: 1.4
- Driver Required: No
- Product Compliance: RoHS; CE (Europe); REACH; FCC (USA); Trade Agreements Act (TAA)
- Product Warranty Period (Worldwide): 3-year limited warranty
