SKU: X07YCL4HXP |  Mfg. Part: 7616  |  0 Reviews  |     Share

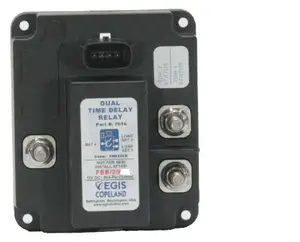

Egis Group Llc 7616 EGIS 7616 TDR Series Dual Output Time Delay Relay 2x80A 12v

3 Available
Condition: New

$126.91  $171.33
 Free Shipping for this Item

Product Overview

EGIS 7616 TDR Series Dual Output Time Delay Relay 2x80A 12v

Model: 7616
  • TOP SIDE DIP SWITCHES: Accessible after installation, for programming time delay and determining active features. Protected by self-retained cover.
  • STAINLESS STEEL SELF-LOCKING HARDWARE: 100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.
  • INTEGRAL I/O CONNECTOR: Rapid and 100% correct assembly via Molex MX-150 connector eliminates poor field connections.
  • STANDARD AND OPTIONAL HARNESSES: Mating plug with 2 feet of ground and ignition wire included. Optional harnesses with additional outputs and alternate wire lengths available
  • EASY INTEGRATION WITH CT FUSE BLOCKS: Optional EasyLink bus bars provide reduces space and cost to connect TDRs with CT series Fuse Blocks.
  • EASY INTEGRATION WITH RT FUSE BLOCKS: Optional EasyLink bus bars provide reduces space and cost to connect TDRs with RT series Fuse Blocks.
  • LED DIAGNOSTICS: Provides indication of pending relay OFF event due to under/over voltage or external off trigger. Output on/off status also provided.
Specifications
Maximum current
Continuous: 80 Amps DC per Output (160 A Total) Intermittent: 120 Amps DC (5 Minutes) per Output
Off State Current Draw1.5 mA (less than 1 Amp-hr battery dissipation per month of stand-by)
Operating SpecificationsVoltage: 12 Vdc Nominal (8 - 18 Vdc) Temperature: -40 to 85 Deg C
Product Warranty4 Years from date of manufacturer
Time Delay Options5 Sec through 4 hours via Dip Switches
Environment Protection StandardsWaterproof to IP66 . IP6K9K Ignition Protected to ISO 8846
Optional FeaturesOptional Features


Product Details

  • Manufacturer:
  • Model Number:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Egis Group LLC
  • 7616
  • New
  • 0.8 lbs
  • 5 X 5 X 5
  • Apr 10, 2026
  • Mar 26, 2026
Product Identifiers: Brand: Egis Group Llc • Part #: 7616 • Category: Time Delay Relays

Egis Group Llc 7616 EGIS 7616 TDR Series Dual Output Time Delay Relay 2x80A 12v

Reviews for Egis Group Llc 7616

$126.91
