Startech STC ARMPIVOTHDB .com ARMPIVOTHDB Mounting Arm for Monitor, Flat Panel Display, Curved Screen Display - Black -

General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:ARMPIVOTHDB
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Model:ARMPIVOTHDB

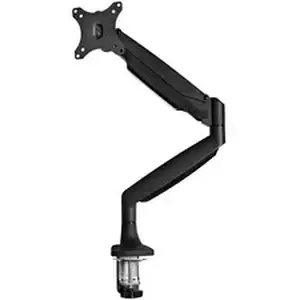

Product Name:Single Desk-Mount Monitor Arm - Full Motion - Heavy-Duty - Black
Marketing Information:Free up space while creating an ergonomic work environment. This desk-mount monitor arm makes it easy to securely mount your display above your desk or table and adjust the height with one touch. You can mount a display ranging in size from 13" to 34" , and the monitor arm features an attractive black finish that complements your workspace.Mount Your Monitor to Save Space

This heavy-duty monitor arm saves space on your work surface by elevating your monitor above your desk or table.

One-Touch Height Adjustment

The monitor-mount arm features a gas-spring cylinder that makes it easy to raise or lower your display, with up to 13.2" (335 mm) of height adjustment. Adjust the tension according to the weight of your monitor, to re-position the monitor height effortlessly.

Adjust Your Monitor for Ideal Viewing

The full-motion articulating monitor arm extends up to 23.8" (605 mm) so it's easy to find the right viewing angle. Swivel or tilt your screen +/-90 degrees for comfortable viewing or rotate it 90 degrees for landscape or portrait viewing.

Easy Installation

The VESA monitor mount is easy to install (desk C-clamp or grommet mount) and offers built-in cable management. The detachable VESA panel makes it simple to attach or remove your monitor.

ARMPIVOTHDB is backed by a StarTech.com 5-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:Mounting Arm

Product Information

---

Device Supported:

• Monitor
• Flat Panel Display
• Curved Screen Display

Number of Displays Supported:1
Maximum Load Capacity:19.84 lb
Minimum Screen Size Supported:13"
Maximum Screen Size Supported:34"
Features:

• Heavy Duty
• Gas Spring
• Swivel
• Tilt
• Rotate
• Cable Management
• Ergonomic
• Full Motion
• Articulating
• Grommet
• 90° Rotation
• 360° Rotation
• Quick Release Mechanism
• Space Saving Design

Minimum Extended Height:13.20"
Height Adjustable:Yes

Physical Characteristics

---

Color Family:Black
Product Color:Black
Finishing:Matte Black
Mounting Pattern:

• 75 x 75
• 100 x 100

Product Material:Aluminum
Height:20.80"
Width:11.20"
Length:3.80"
Weight (Approximate):6.83 lb

Miscellaneous

---

Package Contents:

• 1 x VESA Monitor Mount
• 1 x Grommet Base Plate
• 1 x Grommet Plate
• 1 x L Bracket
• 1 x Desk Clamp
• 1 x Hex Key Holder
• 5 x Clamp Screws
• 1 x Grommet Knob
• 2 x Rubber Pads
• 1 x 4 mm Hex Key
• 1 x 5 mm Hex Key
• 1 x 6 mm Hex Key
• 4 x M4x12 mm Thumbscrews
• 4 x M5x12 mm Screws
• 4 x Washers 4 x Spacers
• 1 x Grommet Screw
• 1 x Instruction Manual

Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

---

Limited Warranty:5 Year
