General Information
Manufacturer:StarTech.com
Manufacturer Part Number:HSB3SATSASBA
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

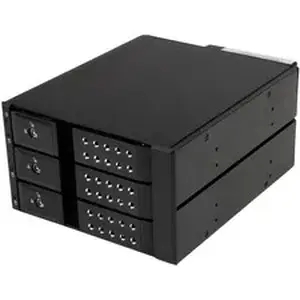

Product Name:3 SATA HDD Backplane
Marketing Information:
The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
Packaged Quantity:1 Each
Product Type:Drive Enclosure
Technical Information
Number of Hard Drives Supported:3
Number of Hard Drives Installed:No
I/O Expansions
Number of Total Expansion Bays:3
Number of 3.5" Bays:3
Network & Communication
Wireless LAN:No
Interfaces/Ports
Drive Interface:
- Serial Attached SCSI (SAS)
- SATA/600
Network (RJ-45):No
Host Interface:Serial ATA/600
Physical Characteristics
Color Family:Black
Product Color:Black
Product Material:Aluminum
Cooling Fan:Yes
Form Factor:Internal
Compatible Drive Bay Width:5.25"
Height:4.3"
Width:5.7"
Depth:7.6"
Weight (Approximate):2.70 lb
Miscellaneous
Package Contents:
- 3 SATA HDD Backplane
- 1 x Installation Screw Kit
- 1 x Instruction Manual
- 2 x Bay Key s
- 3 x 18" SATA Cables
Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:2 Year
