General Information
Manufacturer:StarTech.com
Manufacturer Part Number:IES5102
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

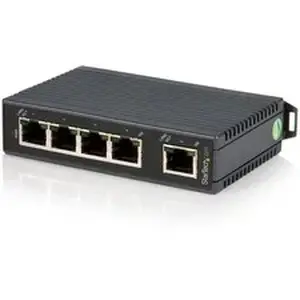

Product Name:5-Port Industrial Ethernet Switch - DIN Rail Mountable
Marketing Information:This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.
Conquer the tough demands of industrial environments
Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.
Get up and running in no time
This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
Reduce your energy costs with Energy-Efficient Ethernet
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
Packaged Quantity:1 Each
Product Type:Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:5
Token Ring Port:No
LRE Port:No
Bypass:No
Modular:No
Management Port:No
USB:No
Stack Port:No
Number of Network (RJ-45) Ports:5
Network (RJ-45):Yes
Port/Expansion Slot Details:5 x Fast Ethernet Network
Media & Performance
Media Type Supported:Twisted Pair
Ethernet Technology:Fast Ethernet
Network Technology:10/100Base-TX
Network & Communication
Layer Supported:2
Management & Protocols
Manageable:No
Reliability
MTBF:1179133 Hour
Power Description
PoE (RJ-45) Port:No
Power Consumption:2.12 W
Physical Characteristics
Color Family:Black
Product Color:Black
Product Material:Plastic
Form Factor:Rail-mountable
Height:4.3"
Width:1"
Length:2.8"
Weight (Approximate):5.30 oz
Miscellaneous
Package Contents:
- 5-Port Industrial Ethernet Switch - DIN Rail Mountable
- 1 x Terminal Block
- 1 x Instruction Manual CD
Certifications & Standards:
Industry Sandards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3az
- IEEE 802.1P
Regulatory Approvals:- EN61000-6-2
- EN61000-6-4
- EN61000-4-3 (Radiated RFI Standards)
- EN61000-4-4 (Burst Standards)
- EN61000-4-6 (Induced RFI Standards)
- EN61000-4-8 (Magnetic Field Standards)
- IEC60068-2-6 Fc (Vibration)
- IEC60068-2-27 Ea (Shock)
Country of Origin:Taiwan
TAA Compliant:Yes
Environmentally Friendly:Yes
Warranty
Limited Warranty:2 Year
