Pre Order
Expected availability: 1-2 weeks
Condition: New

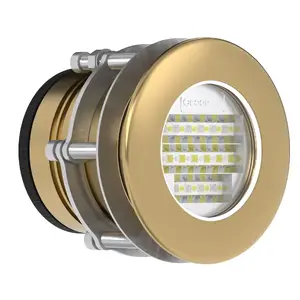

OceanLED Explore E6 XFM
Model: E6009CDOceanLED Explore E6 is the ultimate choice, flush mount underwater LED light for those who want to be seen.
The mix of optic / electronics / form factor / built in driver / plug and play work together to make the most advanced underwater light series available in the market.
All aspects of the design including the clamping kit make installation quicker and simpler.
The compact size and built in driver mean less space is required inside the vessel, allowing installation in tight areas.
The OceanLED Explore E6 has a variety of ways you can control the lights such as switching colours, selecting Strobe Mode or Dynamic Audio Mode.
Specifications| 10,000 | |
| Fixture Lumens (Colours DMX) | 6,000* |
| Min-Max Operating voltage DC | 10-32V DC |
| Colours DMX Current / Amp draw (12V DC / 24V DC) | 6.8A / 3.2A |
| Min-Max Operating voltage AC | 100V - 240V AC |
| Colours DMX Current / Amp draw (110V AC / 230V AC) | 830mA / 400mA |
| Driver type | Internal |
| Boat size | 20m + |
| Transom / Hull spacing | 0.5 - 1.2m (2-4 feet) |
| Installation depth below waterline | 25 - 30cm (10-12 in) |
| Total weight | 1.25kg (2.76lbs) |
| Total Diameter (Including Flange) | 105mm (4.13 in) |
| Diameter Of Body | 80mm (3.15 in) |
| Profile Of Fixture | 4mm (0.16 in) |
| Length | 97mm (3..8 in) |
| Minimum Space Required Inside The Hull | 170mm (6.55 in) |
| Hole Cut-Out | 83mm (3.25 in) |
| Material (Mounting Tube) | AB2 Aluminium Bronze |
| Material (Light Body) | Aluminium |
Ocean Led Usa Llc E6009CD OceanLED Explore E6 XFM Colours DMX Underwater Light
