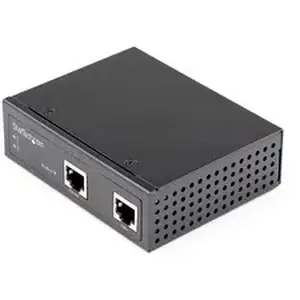

Startech STC POEINJ30W .com POEINJ30W PoE Injector - 56 V DC Input - 1 x Fast Ethernet Input Port(s) - 1 x PoE+ Output P

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:

• Cameras
• Sensors
• Wi-fi access points

Uses Cat 5e (or higher rated) Ethernet cabling.

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32

600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:PoE Injector

• POEINJ30W PoE Injector
• Mounting Hardware Kit
• Quick-Start Guide
• Terminal Block to Barrel Power Connector Adapter
• Terminal Block

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
• IEC 61000-4-2
• IEC 61000-4-4
• IEC 61000-4-5
• EN 60068-2-6
• EN 60068-2-32
• MET (UL) 60950-1
• EN60950-1

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)
