Pre Order
Expected availability: 1-2 weeks
Condition: New

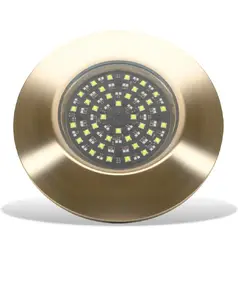

Lumishore EOS THX1604 Thru-Hull Mount and Driver RGBW LED
Model: EOS THX1604 / 010-04522-00Lumishore's THX1604 delivers a powerful 17,500 verified fixture lumens and an ultra-wide 110 deg beam angle for the ultimate halo-effect.
Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.
THX models feature a standard 1in fitting and an external driver. Flush-fit in design, with extremely low profiles.
Suitable for transom, side and bottom mounting.
Specifications| EOS FULL COLOR CHANGE (RGBW) | |
| LUMENS | 39,375 |
| VERIFIED FIXTURE LUMENS (WHITE) | 17,500 |
| NUMBER AND TYPE OF LED | White - 36 x 10W, Green - 36 x 3W, Blue - 36 x 3W, Red - 48 x 3W |
| LED POWER - HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 110 deg |
| DRIVER | Multi-Channel External Driver |
| SUPPLY VOLTAGE | 24 V DC |
| MAX CURRENT DRAW | 6.5A |
| HOUSING TYPE | MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS | From your MFD and/or optional Lumishore Display |
| LIGHTS SYNCHRONIZED | YES |
| COLOR CYCLE w/SPEED ADJUST | YES |
| COLOR SWEEP w/SPEED ADJUST | YES |
| CUSTOMIZABLE FAVORITES | YES |
| FIXED & RANDOM STROBES | YES |
| PROGRAMMABLE SCENES | YES |
| WI-FI CONTROL (APP) | YES |
| SOUND-TO-LIGHT | YES |
| BRIGHTNESS ADJUST | YES |
| AUTO LIGHT DISCOVERY & SETUP | YES |
Garmin Usa, Inc 010-04522-00 Lumishore EOS THX1604 Thru-Hull Mount and Driver RGBW LED
