8 Available
Condition: New

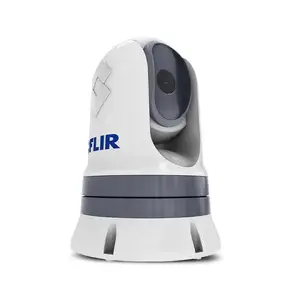

FLIR M332 Single Payload Thermal Camera No JCU 320 x 256 24D HFoV
Model: M332Pairing a rugged, all-weather design with one of the most advanced FLIR thermal imaging cores, the M332 and M364 deliver awareness-enhancing thermal vision for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization and high-performance thermal imaging detect obstacles and targets in complete darkness and heavy seas, allowing safe navigation in the most challenging conditions.
Thermal imaging offers vision in complete darkness, glare, and light fog.
Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.
Exceptional connectivity with navigation and security systems.
Specifications| 320 x 256 VOx Microbolometer | |
| Field of View | 24 deg x 18 deg |
| Image Processing | FLIR Proprietary Digital Detail Enhancement |
| HD-SDI Lossless Video Output | Yes |
| Network Video Output | Single H.264 Network Video Stream |
| Pan & Tilt Adjustment Range | 360 deg Continuous Pan, +- 90 deg Tilt |
| Pan/Tilt | Yes |
| Connections & Communications | |
| Analog Video Output | NTSC/PAL User Settable |
| Analog Video Connector Types | BNC |
| Environmental | |
| Automatic Window Defrost | Standard at Power-Up |
| EMI | IEC60945 |
| Lightning Protection | Standard |
| Operating Temperature Range | -13 degF to +131 degF (-25 degC to +55 degC) |
| Salt Mist | IEC60945 |
| Shock | 15g vertical, 9g horizontal |
| Storage Temperature Range | -30 degF to +158 degF (-30 degC to +70 degC) |
| Vibration | IEC60945 |
| Water Ingress | IPX6 (heavy seas, power jets of water) |
| Wind | 100 knots (115.2 MPH) |
| Sand & Dust Ingress | Mil-Std-810E or IP6X |
| Marine Imaging & Optical | |
| Focus | Fixed 12ft (3m) to infinity |
| Thermal Imaging | |
| Continuous E-Zoom | 8x |
| Focal Length - Thermal | 9.1mm |
| Video Refresh Rate - Thermal | 30 Hz |
Teledyne Flir Maritime Us, Inc E70527 FLIR M332 Single Payload 30 Hz Thermal Camera No JCU 320 x 256 24D HFoV
