Navico Group Americas Llc 3117-BSS Blue Sea Panel Enclosure Dual 120v AC 30A ELCI Main Surface Mount System

4 Available
Condition: New

$822.47  $1,110.33
 Free Shipping for this Item

Product Overview

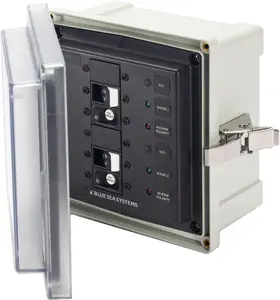

Blue Sea SMS Surface Mount System Panel Enclosure - 2 x 120V AC / 30A ELCI Main

Model: 3117-BSS
  • Includes one Dual 120V AC / 30A ELCI Main
  • Glass filled polycarbonate mounting box
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Stainless steel mounting hardware included
  • Includes waterproof glands
  • LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Specifications
Minimum Operating Temperature
-40 deg C
Maximum Operating Temperature85 deg C
Cover Screws and Hardware10-32 Stainless Steel
Enclosure Size6.0 x 6.0 in x 4.0 in (152mm x 152mm x 102mm)
Exterior Overall Dimensions7.6 in x 7.4 in x 4.7 in (192mm x 188mm x 120mm)
Mounting Hardware1/4 in Diameter


Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • NAVICO GROUP AMERICAS LLC
  • 3117-BSS
  • 632085031176
  • New
  • 7 lbs
  • 5 X 5 X 5
  • Mar 26, 2026
  • Mar 26, 2026
Product Identifiers: Brand: Navico Group Americas Llc • Part #: 3117-BSS • UPC: 632085031176
