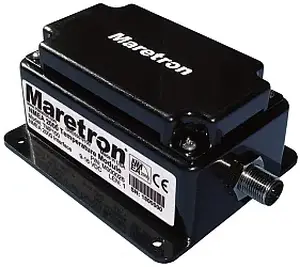

Teledyne Flir Maritime Us, Inc TMP100-01 Maretron TMP100-01 Temperature Module

Maretron's TMP100 measures the temperature for up to 6 temperature probes and reports the information over an NMEA 2000 network. The TMP100 supports up to 4 thermistor probes and 2 high temperature thermocouple probes. Optional thermistor probes (-20 degC to 80 degC or -4 degF to 176 degF) cover a wide range of applications including cabin air temperature, engine room air temperature, refrigerator/freezer temperature, under bolt temperature (inverters, charges, pumps, motors, etc.), tank temperatures (live well bait, hot water, etc.), and air duct temperatures. The optional thermocouple probes (0 degC to 900 degC or 32 deg to 1652 degF) are used to measure Exhaust Gas Temperature (EGT) as part of a comprehensive fuel management system. Best of all, the TMP100 is NMEA 2000(R)certified so you can view any and all temperature information anywhere on the vessel using a compatible NMEA 2000(R) display. The TMP100 is a key component of Maretron's N2KView(R) vessel monitoring and control system.

FEATURES

• Six External Temperature Probes are Measured and Broadcast Over NMEA 2000 Network
• Four Channels for Thermistor Probes and 2 Channels for High Temperature Thermocouple Probes
• Wide Variety of Applications Supported with Optional Temperature Probes

APPLICATIONS
