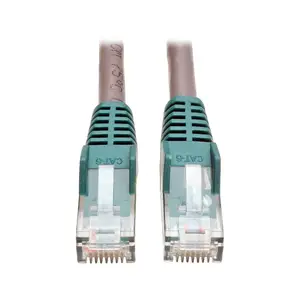

Tripp Lite N210-010-GY EATON, CAT6 GIGABIT CROSS-OVER MOLDED PATCH CABLE (RJ45 M) - GRAY, 10-FT.

This Gray Cat6 crossover molded cable has two standard RJ45 molded male connectors featuring integral strain relief. The cable is designed to connect hub-to-hub, PC-to-PC or Mac-to-Mac and is perfect in conjunction with 10/100/1000Base-T networks. Molded connectors are a different color to help identify this cable as a crossover cable and not a standard Ethernet cable. Manufactured from PVC 4-pair stranded UTP and rated for 550 MHz/1 Gbps communication. Snagless Cat6 cables are also available. Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL.

• UPC Code: 037332124357
• Technology: Cat6
• Cable Jacket Color: Gray
• Cable Jacket Material: PVC
• Cable Jacket Rating: CM
• Cable Shielding: UTP
• Cable Outer Diameter (OD): 6.2 mm
• Number of Conductors: 4 Pair
• Conductor Material: Stranded Copper
• Conductor Gauge: 24 AWG
• Cable Length (ft.): 10
• Cable Length (in.): 120
• Shipping Dimensions (hwd / in.): 0.25 x 6.10 x 7.50
• Shipping Weight (lbs.): 0.30
• Operating Temperature Range: 14? to 122?F (-10? to 50?C)
• Storage Temperature Range: 5? to 140?F (-15? to 60?C)
• Operating Humidity Range: 0% to 90% RH, Non-Condensing
• Storage Humidity Range: 0% to 90% RH, Non-Condensing
• Bandwidth per TIA Standard: 250 MHz
• Maximum Bandwidth as Tested: 500 MHz
• Network Compatibility: 1 Gbps (Gigabit)
• IEEE Standards Supported: 802.3an; 802.3at
• Side A - Connector 1: RJ45 (MALE)
• Side B - Connector 1: RJ45 (MALE)
• Contact Plating: Gold
• PoE Type: Type 2 PoE+ (30W, IEEE 802.3at)
• Connector Type: Snagless; Molded
• Wiring Configuration: EIA/TIA 568B
• Snagless Connector: Yes
• Product Certifications: UL Listed; cUL Listed
• Product Compliance: CE (Europe); RoHS; IEEE 802.3an 10GBase-T; IEEE 802.3at PoE+; REACH; UKCA
• Product Warranty Period (Worldwide): Lifetime limited warranty
