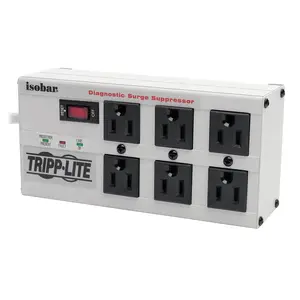

Tripplite IBAR6-6D EATON, ISOBAR 2-OUTLET SURGE PROTECTOR, 6FT CORD WITH RIGHT-ANGLE PLUG, 1410 JOULES, METAL HOUSING

Premium protection for essential network workstations, telecom systems, point-of-sale equipment and audio/video systems, the ISOBAR6 Isobar(R) 6-Outlet Surge Protector features a network-grade surge protection rating of 3300 joules to defend your sensitive electronics against even the strongest surges and spikes.The ISOBAR6 features six NEMA 5-15R outlets, which are arranged in three exclusive isolated filter banks that prevent equipment connected to one bank from interacting with equipment connected to the other. These internal barriers also prevent disruptive line noise from causing A/V distortion, computer lock-ups, data errors and similar problems. Large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors remove EMI/RFI interference and prevent system crashes, reboots and performance problems.Because residential power outlets have three wires--hot line (H), neutral (N) and ground (G)--the ISOBAR6 protects all three, covering two protection modes: full normal mode (H-N) and common mode (N-G/H-G).Included safety covers protect against dust while blocking accidental contact with unused outlets. An integrated 12A circuit breaker protects all outlets and shuts down connected equipment in the event of an overload. A lighted on/off switch provides one-touch control over connected component. Diagnostic LEDs show power, protection and line fault status at a glance. A six-foot (1.8-meter) AC power cord with right-angle 5-15P plug reaches nearby outlets and allows furniture to be placed flush against the wall. An all-metal stands up to rugged environments.

• UPC Code037332010117
• INPUT
• Nominal Input Voltage(s) Supported120V AC
• Recommended Electrical Service120V (110-125V)
• Input Cord Gauge Type14 gauge
• Input Cord Gauge (AWG)14
• Voltage Compatibility (VAC)120
• Maximum Surge Amps135000
• Input Plug TypeNEMA 5-15P
• Input Cord DetailsSJT
• Input Cord Length (ft.)6
• Right-Angle Plug: Yes
• Frequency Compatibility: 50 / 60 Hz
• Output Receptacles: (6) 5-15R
• Circuit Breaker (amps): 12
• Transformer Accommodation: (3) Yes
• Diagnostic LED(s): Yes
• Switches: Combination AC circuit breaker and two position red illuminated on/off power switch
• AC Suppression Joule Rating: 3330
• AC Suppression Response Time: NM = 0 ns. CM = <1 ns
• Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
• AC Suppression Surge Current Rating: 97,000 amps (36,000 NM / 61,000 CM)
• AC Suppression Components Used: Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.
• Safe Thermal Fusing: Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
• UL1449 Let Through Rating: 330V
• IEEE587 Cat. A Ringwave Let-Through: Less than 35 volts
• EMI / RFI Filtering: 40-80 dB
• Isolated Filter Banks: Yes
• Immunity: Conforms to IEE 587 / ANSI C62.41
• Automatic Shut-Off: Yes
• Network (Ethernet) Protection: No
• Material of Construction: Metal
• Power Cord Color: Light Gray
• Housing Color: Light Gray
• Mounting Holes or Slots: Yes
• Slot or Hole Mount Measurement (Center to Center): Distance between horizontal tabs = 171.34 mm; Distance between vertical tabs = 58.17 mm
• Outlets Measurement (Center to Center): Distance between horizontal outlets = 39.45mm; Distance between vertical outlets = 39.30mm
• Receptacle Color: Black
• Shipping Dimensions (hwd / in.): 11.50 x 3.20 x 7.20
• Shipping Weight (lbs.): 2.90
• Unit Dimensions (hwd / in.): 2.500 x 6.000 x 3.500
• Unit Weight (lbs.): 2.4
• Product Certifications: CAN/CSA-C22.2 No. 269.3 (Canada); UL 1449
• Product Compliance: RoHS
• Product Warranty Period (Worldwide): Lifetime limited warranty
• Connected Equipment Insurance (U.S., Canada & Puerto Rico): $50,000 Ultimate Lifetime Insurance
