General Information
Manufacturer:StarTech.com
Manufacturer Part Number:SFP10GBX10DS
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

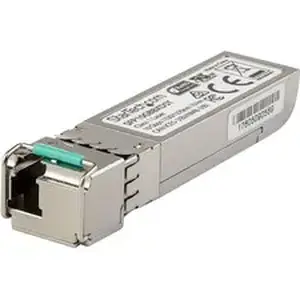

Product Name:Dell EMC SFP-10G-BX10-D Compatible SFP+ Transceiver Module - 10GBase-BX10
Marketing Information:The SFP10GBX10DS is a Dell EMC SFP-10G-BX10-D compatible downstream fiber SFP transceiver which pairs with StarTech.com's SFP10GBX10US. They are designed, programmed and tested to work with 10GBase-BX10 compatible Dell EMC switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
- Wavelength: 1270nmTx/1330nmRx
- Maximum Data Transfer Rate: 10Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 3,736,187 hours
- Power Consumption: < 1.3W
- DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
Packaged Quantity:1 Each
Product Type:SFP+
Technical Information
Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
Total Number of Ports:1
Connector Type:LC
Interfaces/Ports Details:1 x LC Duplex 10GBase-BX10-D Network
Media & Performance
Media Type Supported:Optical Fiber
Fiber Mode Supported:Single-mode
Ethernet Technology:10 Gigabit Ethernet
Network Technology:10GBase-BX10-D
Physical Characteristics
Form Factor:Hot-swappable
Miscellaneous
Compatibility:MSA Compliant
Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:Lifetime
