General Information
Manufacturer:StarTech.com
Manufacturer Part Number:DK30A2DH
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

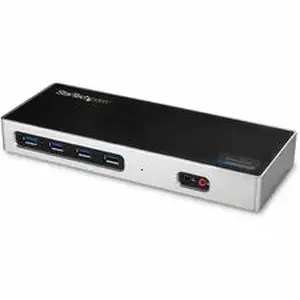

Product Name:Dual-4K Docking Station with 6 x USB 3.0 Ports
Marketing Information:
This dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.
Enhance Productivity with Dual-4K 60Hz Video
Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.
With the dual-4K dock, connect:
- 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
- 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
- 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
Connects to USB-C and USB-A Laptops
The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.
All the Connections You Need
This USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.
DK30A2DH is backed by a StarTech.com 3-year warranty and free lifetime technical support.
More from the Manufacturer
Packaged Quantity:1 Each
Product Type:Docking Station
Technical Information
Connectivity Technology:Wired
Device Supported:Notebook
Number of Displays Supported:2
Screen Mode Supported:4K
Supported Resolutions:
Network & Communication
Ethernet Technology:Gigabit Ethernet
Interfaces/Ports
Host Interface:USB Type C
Audio Line Out:Yes
Number of USB 3.0 Ports:6
USB Type-C:Yes
USB Type-C Detail:1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
Network (RJ-45):Yes
Number of DisplayPort Outputs:2
DisplayPort:Yes
Microphone:Yes
Number of HDMI Outputs:2
HDMI:Yes
Thunderbolt:Yes
Controls/Indicators
Status Indicators:1 x Power
Software
Operating System Supported:
- Windows XP
- Windows Vista
- Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- Mac OS X 10.6 Snow Leopard
- Mac OS X 10.12 Sierra
- Mac OS X 10.14 Mojave
- Mac OS X 10.15 Catalina
- Mac OS X 11.0 Big Sur
- Mac OS X 12.0 Monterey
- Mac OS X 13.0 Ventura
- Ubuntu 18.04
- Ubuntu 20.04
- ChromeOS 55+
- macOS 14
Power Description
Maximum Power Supply Wattage:40 W
Physical Characteristics
Color Family:Dual Color
Product Color:
Height:1.10"
Width:3.30"
Depth:8.80"
Weight (Approximate):15.20 oz
Miscellaneous
Package Contents:
- Dual-4K Docking Station with 6 x USB 3.0 Ports
- 1 x USB-C to USB-A cable
- 1 x USB-C to USB-C cable
- 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
- 1 x Quick-Start Guide
Environmentally Friendly:Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:China
Warranty
Limited Warranty:3 Year
