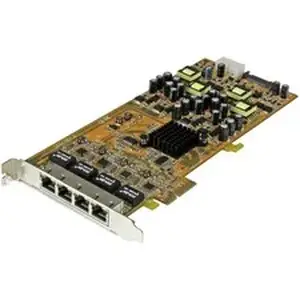

Startech STC ST4000PEXPSE .com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC - PCI Ex

General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:ST4000PEXPSE
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC
Marketing Information:The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.

The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.

Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:Gigabit Ethernet Card

Technical Information

---

Chipset Manufacturer:Realtek
Chipset Model:RTL8111E

Interfaces/Ports

---

Host Interface:PCI Express x4
Total Number of Ports:4
Number of Network (RJ-45) Ports:4

Media & Performance

---

Media Type Supported:Twisted Pair

Network & Communication

---

Network Technology:10/100/1000Base-T

Physical Characteristics

---

Form Factor:Plug-in Card
Height:4.7"
Width:0.7"
Depth:9.6"
Length:9.6"
Weight (Approximate):3.60 oz

Miscellaneous

---

Package Contents:

• 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC
• 1 x Driver CD
• 1 x Instruction Manual

Device Supported:Computer
System Requirements:

• Windows® 2000, XP, Vista, 7, 8, 8.1, 10
• Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
• Linux 2.4.x to 4.11.x LTS Versions Only

Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes

Warranty

---

Limited Warranty:2 Year
