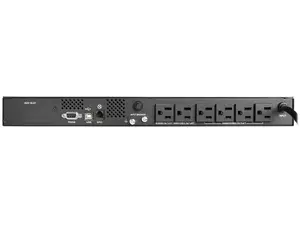

1U rack-mount UPS offers complete power protection for small network applications, including telecom, security and digital signage.
- UPC Code: 037332119247
- UPS Type: Line-Interactive
- Input Phase: Single-Phase
- Rated input current (Maximum Load): 10A
- Nominal Input Voltage(s) Supported: 120V AC
- UPS Input Connection Type: 5-15P
- Input Circuit Breakers: 10A
- UPS Input Cord Length (ft.): 10
- Recommended Electrical Service: 15A 120V
- Output Capacity (VA): 500
- Output Capacity (kVA): 0.5
- Output Capacity (Watts): 300
- Output Capacity (kW): 0.3
- Output Capacity Details: 4.2A @ 120V. (LINE MODE) 120% @ 5 minutes; (BATTERY MODE) 120% @ 5 seconds
- Power Factor: 0.6
- Nominal Voltage Details: 120V sinusoidal in line mode and 120V PWM in battery mode
- Frequency Compatibility: 60 Hz
- Frequency Compatibility Details: Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal.
- Output Voltage Regulation (Line Mode): -14%, +16%
- Output Voltage Regulation (Battery Mode): +/- 5%
- UPS Output Receptacles (Surge Suppression Only): 5 UPS outlets, 1 surge-only outlet
- Load Management Receptacles: One switchable single-outlet 5-15R load bank
- Output AC Waveform (AC Mode): Sine wave
- Output AC Waveform (Battery Mode): PWM sine wave
- Nominal Output Voltage(s) Supported: 120V
- Output Receptacles: (6) 5-15R
- Individually Controllable Load Banks: Yes
- Battery Type: Valve Regulated Lead Acid (VRLA)
- Runtime Full Load (min.): 3 min. (300W)
- Runtime Half Load (min.): 14 min. (150W)
- DC System Voltage (VDC): 12
- Battery Recharge Rate (Included Batteries): Less than 12 hours to 90%
- Battery Access: Battery access door
- Internal UPS Replacement Battery Cartridge: IMPORTANT BATTERY REPLACEMENT INFORMATION > Use Tripp Lite RBC12V-1U replacement battery for SMART500RT1U models with Series Number AG-03AA listed on the UPS nameplate (sold starting in 2021); For all prior versions of SMART500RT1U, use Tripp Lite RBC62-1U replacement battery; Contact Tripp Lite customer service for additional information
- Battery Replacement Description: Hot-swappable, user replaceable batteries
- Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 90 (+-5%). Input voltage range of 90 to 139
- Undervoltage Correction: Input voltages between 90 and 105 (+-5%) are boosted by 14%
- Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation
- Alarm Cancel Operation: Power-fail alarm can be silenced using alarm-cancel switch
- Audible Alarm: Audible alarm indicates power-failure, overload and low-battery conditions
- LED Indicators: 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
- EMI / RFI AC Noise Suppression: Yes
- AC Suppression Joule Rating: 567
- AC Suppression Response Time: Instantaneous
- Primary Form Factor: Rackmount; Tower
- Rack Height: 1U
- Included Mounting Accessory Description: Included mounting brackets provide front-rail installation in 2 or 4 post racks, plus upright tower configurations
- Installation Form Factors Supported with Included Accessories :2 post 19 inch rackmount; 2 post front mount; 4 post 19 inch rackmount; Tower
- Minimum Required Rack Depth (inches): 15
- Primary UPS Depth (mm): 286
- Primary UPS Height (mm): 44
- Primary UPS Width (mm): 440
- Shipping Dimensions (hwd / in.): 4.20 x 15.70 x 21.30
- Shipping Weight (lbs.): 19.12
- UPS Housing Material: Steel
- UPS Power Module Dimensions (hwd, in.): 1.73 x 17.32 x 11.26
- UPS Power Module Weight (kg): 7.18
- UPS Power Module Weight (lbs.): 15.84
- Unit Weight (lbs.): 15.800
- Operating Temperature Range: 32? to 104?F (0? to 40?C)
- Storage Temperature Range: 5? to 122?F (-15? to 50?C)
- Relative Humidity: 0 to 95%, non-condensing
- AC Mode BTU / Hr. (Full Load): 48
- AC Mode Efficiency Rating (100% Load): 97%
- AC Economy Mode Efficiency Rating (100% Load): 0.97
- Operating Elevation (ft.): 6561 ft. (2000 m) above sea level
- Audible Noise: 45 dBA maximum, front side 1m
- Network Management Cards: WEBCARDLX
- Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
- PowerAlert Software: For local monitoring via the UPS's built-in communication ports, download PowerAlert software at https://tripplite.eaton.com/products/power-alert
- Communications Cable: USB and DB9 cabling included
- WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Network Management Card Description: Network management card optional
- Communications Interface: DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)
- Transfer Time: 4-6 ms typical ( < 10 ms max)
- Low Voltage Transfer to Battery Power (Setpoint): 90
- High Voltage Transfer to Battery Power (Setpoint): 139
- Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
- High Availability UPS Features: Auto Probe Monitoring and Reboot (requires WEBCARDLX); Automatic Voltage Regulation (AVR); Hot swappable batteries; Remote management; Surge/noise protection
- Grounding Details: Back panel grounding lug
- UPS Applications: High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
- Product Certifications: CSA (Canada); NOM (Mexico); UL 1778
- Product Compliance: RoHS; ENERGY STAR Qualified
- Product Warranty Period (Worldwide): 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance
