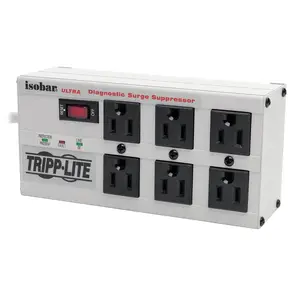

Premium protection for A/V components, network hardware, retail displays, appliances, power tools and other expensive electronics against dangerous surges, spikes and line noise in home, office and industrial environments.
- UPC Code: 037332010544
- Nominal Input Voltage(s) Supported: 120V AC
- Recommended Electrical Service: 120V (110-125V)
- Input Cord Gauge (AWG): 14
- Voltage Compatibility (VAC): 120
- Maximum Surge Amps: 135000
- Input Plug Type: NEMA 5-15P
- Input Cord Details: SJT
- Input Cord Length (ft.): 6
- Right-Angle Plug: Yes
- Frequency Compatibility: 50 / 60 Hz
- Output Receptacles: (6) 5-15R
- Circuit Breaker (amps): 12
- Transformer Accommodation: (2) Yes
- Diagnostic LED(s): Yes
- Switches: Combination AC circuit breaker and two position red illuminated on/off power switch
- Diagnostic LED Details: PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
- AC Suppression Joule Rating: 3330
- AC Suppression Response Time: NM = 0 ns. CM = <1 ns
- Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
- AC Suppression Surge Current Rating: 97,000 amps (36,000 NM / 61,000 CM)
- AC Suppression Components Used: Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.
- Safe Thermal Fusing: Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
- UL1449 Let Through Rating: 330V
- IEEE587 Cat. A Ringwave Let-Through: Less than 35 volts
- EMI / RFI Filtering: 40-80 dB
- Isolated Filter Banks: Yes
- Immunity: Conforms to IEE 587 / ANSI C62.41
- Automatic Shut-Off: Yes
- Network (Ethernet) Protection: No
- Material of Construction: Metal
- Power Cord Color: Light Gray
- Housing Color: Light Gray
- Mounting Holes or Slots: Yes
- Slot or Hole Mount Measurement (Center to Center): Distance between horizontal tabs = 171.35 mm; Distance between vertical tabs = 58.17 mm
- Outlets Measurement (Center to Center): Distance between horizontal outlets = 39.45mm; Distance between vertical outlets = 39.30mm
- Receptacle Color: Black
- Shipping Dimensions (hwd / in.): 11.70 x 3.10 x 7.20
- Shipping Weight (lbs.): 2.80
- Unit Dimensions (hwd / in.): 2.500 x 9.000 x 3.500
- Unit Weight (lbs.): 2.18
- Product Warranty Period (Worldwide): Lifetime limited warranty
- Connected Equipment Insurance (U.S., Canada & Puerto Rico): $50,000 Ultimate Lifetime Insurance
