General Information
Manufacturer:StarTech.com
Manufacturer Part Number:DISPL10MA
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

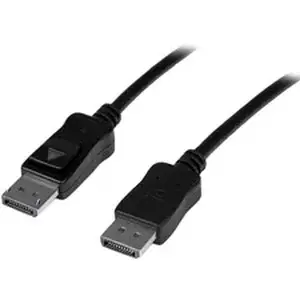

Product Name:10m Active DisplayPort Cable - DP to DP M/M
Marketing Information:Connect DisplayPort®-equipped devices up to 10m away with no signal loss. The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.
This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560r-1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.
This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.
Please Note: This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.
Packaged Quantity:1 Each
Product Type:Video Cable
Technical Information
Cable Type:DisplayPort
Cable Length:32.81 ft
Connector Type on First End:DisplayPort Digital Audio/Video - Male
Connector Gender on First End:Male
Connector on First End Details:1 x 20-pin DisplayPort Digital Audio/Video - Male
Connector Type on Second End:DisplayPort Digital Audio/Video - Male
Connector Gender on Second End:Male
Connector on Second End Details:1 x 20-pin DisplayPort Digital Audio/Video - Male
Connector Plating:Nickel
Conductor:Copper
Shielding:Yes
Jacket Type:CMG
Device Supported:
- Audio/Video Device
- Monitor
- Projector
- Notebook
- Workstation
- Amplifier
- Graphics Card
American Wire Gauge:32 AWG
Data Transfer Rate:10.8 Gbit/s
Supported Resolution:3840 x 2400
Features:
- Active
- Signal Booster
- Flexible
- HDCP
- DPCP
- Latching Connector
- Multi-Stream Transport (MST) Support
- EMI Protection
Physical Characteristics
Color Family:Black
Product Color:Black
Jacket Material:Polyvinyl Chloride (PVC)
Height:0.5"
Width:0.8"
Weight (Approximate):1 lb
Shipping Height:1.57"
Shipping Width:10.04"
Shipping Weight (Approximate):1.03 lb
Miscellaneous
Compatibility:FirePro S9000/7000, W8100/7100/5100 or R5000 Graphic Cards
Certifications & Standards:
Environmentally Friendly:Yes
Country of Origin:China
Warranty
Limited Warranty:2 Year
