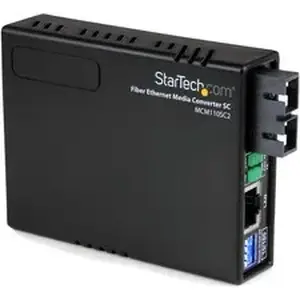

Startech STC MCM110SC2 .com 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km - 1 x Network (RJ-45) - 1 x SC P

General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:MCM110SC2
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km
Marketing Information:The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.

The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.

This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:Transceiver/Media Converter

Interfaces/Ports

---

Total Number of Ports:2
Network (RJ-45):Yes
Number of Network (RJ-45) Ports:1
Number of SC Ports:1
SC Port Type:Duplex

Media & Performance

---

Media Type Supported:

• Optical Fiber
• Twisted Pair

Fiber Mode Supported:Multi-mode
Fiber Optic Cable Wavelength:0.1 mil

Network & Communication

---

Ethernet Technology:Fast Ethernet
Network Technology:

• 10Base-T
• 100Base-FX
• 100Base-TX

Power Description

---

Power Source:AC Adapter
Power Consumption:2.40 W
Plug/Connector Type:Type M

Physical Characteristics

---

Form Factor:External
Height:0.8"
Width:3"
Depth:3.7"
Weight (Approximate):3 oz

Miscellaneous

---

Additional Information:

• Plug Type: M
• Fiber Operating Mode: Half/Full-Duplex

Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes

Warranty

---

Limited Warranty:2 Year
