General Information
Manufacturer:StarTech.com
Manufacturer Part Number:BNDTB4M2E1
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

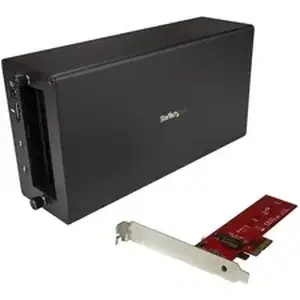

Product Name:Thunderbolt 3 to PCIe M.2 adapter - Chassis + Card
Marketing Information:This Thunderbolt 3 to PCIe M.2 adapter lets you take advantage of the speed of PCIe solid-state drives, connected externally to your Thunderbolt 3 desktop or laptop computer. The adapter combines the StarTech.com Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and the M.2 PCIe SSD adapter card ( PEX4M2E1), giving you a DisplayPort output and an additional Thunderbolt 3 port. Boost your system speed and performance Get ultra-fast data access by adding this PCIe M.2 SSD adapter externally to your existing Thunderbolt 3 computer, using the Thunderbolt 3 chassis -- improving your storage performance and expanding overall capacity. The adapter supports PCIe M.2 SSDs (NVMe and AHCI): 2242, 2260, 2280, and 22110 drives. Extend your workstation Connect additional displays through the chassis' dedicated DisplayPort output and second Thunderbolt 3 (USB-C) port (USB-C video adapter may be required). With two extended displays, you can multitask effortlessly, avoiding the hassle of repositioning open windows or programs repeatedly throughout your workday. Install with ease You can assemble and connect the adapter in minutes. Put it together using only a screwdriver then plug and play with no software or drivers required. The PEX4M2E1 and TB31PCIEX16 are backed by a StarTech.com 2-year warranty.
Packaged Quantity:1
Product Type:Expansion Chassis
Technical Information
Connectivity Technology:Wired
Interfaces/Ports
Host Interface:Thunderbolt 3
DisplayPorts Quantity:1
Power Description
Power Plug Type:Type N
Power Source Type:Power Adapter
Physical Characteristics
Color Family:Black
Product Color:Black
Product Material:
Height:3.2"
Width:5.6"
Length:11"
Weight (Approximate):3.60 lb
Miscellaneous
Package Contents:
- 1 x Thunderbolt 3 PCIe expansion box
- 1 x Thunderbolt 3 cable
- 4 x Rubber feet
- 1 x Universal power adapter (NA/JP, UK, EU, ANZ)
- 1 x X4 PCI Express® to M.2 PCIe SSD Adapter
- 1 x Low profile bracket
- 1 x Full profile bracket (prexinstalled)
- 2 x Quick start guides
- 1 x SSD standoff and installation screw
Additional Information:
- Internal Ports" 1 - PCI Express x16; 1 - PCI Express x4
- External Ports: 1 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps); 1 - DisplayPort (20 pin)
- Drive Connectors: 1 - M.2 (PCIe, AHCI, M-Key, NGFF)
- Host Connectors: 1 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps)
- Fan(s): Yes
- Fans: 1 - 92 mm
- Air Flow Rate: 14.06 CFM
- Noise Level: 24.55 dB
- Interface: Thunderbolt; PCI Express
- Bus Type: Thunderbolt 3; PCI Express
- Card Type: Standard Profile
- Industry Standards: Thunderbolt 3
- Fan Bearing Type: Sleeve Bearing
- Chipset ID: Chassis: Intel - Alpine Ridge DSL6540 ; PCIe Card: N/A
Application/Usage:
Certification:
Environmentally Friendly:Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:2 Year
