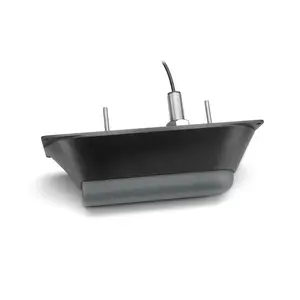

Garmin GT51M-TH Transducer
Stainless Steel TH 12-Pin
Model: 010-01966-10Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVu and CHIRP SideVu scanning sonar with a stainless steel stem, this thru-hull mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions.
The CHIRP ClearVu/ SideVu elements have a power rating of 500 W per element and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 5 degrees.
GT51M-TH includes a 12-pin transducer with stainless steel stem, fairing block, isolation plate and bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
Specifications| (80-160 kHz) | |
| ClearVu/SideVu CHIRP | 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz) |
| Power | |
| CHIRP Traditional | 600 W |
| ClearVu/SideVu | 500 W |
| Beamwidth | |
| Traditional | 24 deg-13 deg |
| ClearVu/SideVu | 2.0 degx51 deg @ 260 kHz and 1.4 degx29 deg @ 455 kHz |
| Maximum depth | |
| Traditional | 1,800 ft |
| ClearVu | 1,000 ft |
| SideVu | 750 ft |
| Depth/Speed/Temperature | Depth and Temperature |
| Number of pins | 12-pin |
| Cable length | 5 ft. + 30 ft. extension cable |
| Supported deadrise/Transom angles | Up to 5 deg deadrise |
Garmin Usa, Inc 010-01966-10 Garmin GT51M-TH Transducer Stainless Steel TH 12-Pin
