General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SMT1500RMI1U
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Series:SMT

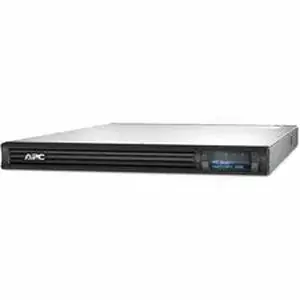

Product Name:Smart-UPS 1500VA LCD RM 1U 230V
Marketing Information:This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 1U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4 IEC 320 C13 outlets, and 2 IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Packaged Quantity:1 Each
Product Type:Line-interactive UPS
Technical Information
Plug/Connector Type:IEC 320-C14
Receptacle Type:IEC 60320 C13
Receptacle Detail:
- 2 x IEC Jumper
- 4 x IEC 320-C13
Number of Battery & Surge Outlets:6
Protection Type:
Cord Length:8 ft
Power Description
Load Capacity (VA):1500 VA
Load Capacity (Watt):1000 W
Input Voltage:230 V
Input Current:12 A
Output Voltage:230 V AC
Waveform Type:Sine Wave
Surge Energy Rating:540 J
Circuit Breaker:Yes
Management
Alarm:
- On Battery
- Low Battery
- Configurable Delay
Interfaces/Ports
Serial Port:Yes
Network (RJ-45):Yes
USB:Yes
Total Number of Expansion Slots:1
Battery Information
Battery Characteristics:Spill-proof, Maintenance-free
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):5 Minute
Backup/Run Time (Half Load):17 Minute
Typical Battery Recharge Time:4 Hour
Hot Swappable:Yes
Environmental Conditions
Maximum Operating Temperature:113°F (45°C)
Sound Emission (A-Weighted):46 dB(A)
Thermal Dissipation:34 W
Physical Characteristics
Color Family:Black
Product Color:Black
Height:1.7"
Width:17"
Depth:26.2"
Rack Height:1U
Form Factor:Rack-mountable
Mounting Preference:Lower
Mounting Location:Front
Weight (Approximate):53.11 lb
Miscellaneous
For Country/Region:United States
Package Contents:CD with softwareDocumentation CDInstallation guideRack Mounting support railsSmart UPS signalling RS-232 cableUSB cableWarranty card
Certifications & Standards:CE|EAC|RCM|VDE|UK PSTI
Optimized Energy Efficiency:Yes
Product Take Back Program:Yes
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/filesrp_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500RMI1U_ROHS_DECLARATION&p_FileName=SMT1500RMI1UKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspxraction=exportPdfReach&pid=384166907&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspxraction=export&pid=384166907&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/filesrp_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
End of Life Manual Availability:https://download.schneider-electric.com/filesrp_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
REACH free of SVHC:No
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:3 Year
Additional Warranty Information:3 years repair or replace (excluding battery) and 2 years for battery
