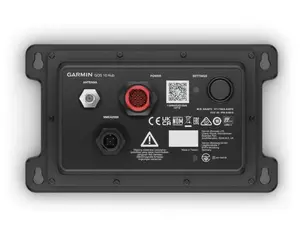

Garmin GOS10 Hub for Onboard System
Model: 010-02908-10Protect your passengers and loved ones with the GOS 10 Hub for the Garmin OnBoard system. One of the main components of your Garmin OnBoard system, the GOS 10 Hub communicates wirelessly with the MOB tags and connects to your vessel's engine harness to provide Engine Cut Off System (ECOS) functionality.
Specifications| 91.55 mm x 155.12 mm x 48.47 mm | |
| Weight | 171.7 g |
| Wireless range | 66 ft (up to 20 m) |
| Supply voltage range | 10-32 V |
| Operating temperature range | -15 C to 70 C |
| Typical power consumption | 50mA @ 12 V or 0.6 W |
| NMEA 2000 LEN | 1 |
| Engine compatibility | Inboard, outboard, sterndrive from all major manufacturers |
| Engine interface | Hardwired, in-line connection to ignition harness |
| Number of engines supported | Up to 4 close-to-stop or 2 open-to-stop engines |
| Water rating | IPX6 and IPX7 |
| Compass-safe distance | 5 cm |
Garmin Usa, Inc 010-02908-10 Garmin GOS10 Hub for Onboard System
