Startech STC MPO12PL5M .com Fiber Optic Network Cable - 16.40 ft Fiber Optic Network Cable for Patch Panel, Switch, Netw

General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:MPO12PL5M
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Fiber Optic Network Cable

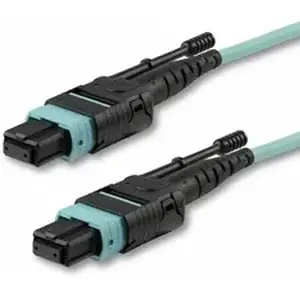

Marketing Information:This MPO/MTP fiber optic cable houses 12 fibers and lets you interface between different networking devices of varying speeds. For example, you can set up a one-to-one connection between two 40Gbps switches or servers. Alternatively, you can connect a 40Gbps switch and break out the 40Gbps into six duplex 10Gbps LC connections on a patch panel or network cassette, which then fans out to individual 10Gbps devices.

The MTP connector provides twelve times the density of an SC connector and saves circuit card and rack space. Plus, the push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without having to use additional tools.

The MTP to MTP cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.

Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.

The MPO12PL5M from StarTech.com is backed by a lifetime warranty.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:Network Cable

Technical Information

---

Cable Type:Fiber Optic
Fiber Optic Mode:Multi-mode
Fiber Optic Cable Core/Cladding Specification:50/125 µm
Cable Length:16.40 ft
Connector Type on First End:MTP/MPO Network - Female
Connector Gender on First End:Female
Connector on First End Details:1 x MTP/MPO Network - Female
Connector Type on Second End:MTP/MPO Network - Female
Connector Gender on Second End:Female
Connector on Second End Details:1 x MTP/MPO Network - Female
Jacket Type:

• OFNP
• Plenum

Device Supported:

• Patch Panel
• Switch
• Network Device
• Server
• Router
• Media Converter
• Hub

Data Transfer Rate:40 Gbit/s

Physical Characteristics

---

Color Family:Green
Product Color:Aqua
Weight (Approximate):0.11 lb
Shipping Height:0.59"
Shipping Width:7.87"
Shipping Weight (Approximate):2.08 oz

Miscellaneous

---

Environmentally Friendly:Yes
Country of Origin:China

Warranty

---

Limited Warranty:Lifetime
