General Information
Manufacturer:StarTech.com
Manufacturer Part Number:DISPLPORT20L
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

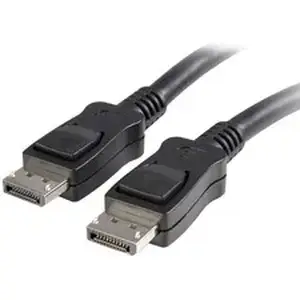

Product Name:20 ft DisplayPort Cable with Latches - M/M
Marketing Information:The DISPLPORT20L 20-foot DisplayPort® Cable supports a maximum bandwidth of 10.8 Gbps, and is capable of providing higher performance than either HDMI® or dual link DVI, while supporting next generation multimedia applications with a maximum resolution capability of up to WQXGA (2560r-1600).
The cable features latching connectors, with support for two-way display connectivity and optional audio support.
Featuring 26 gauge (AWG) pure copper wire, the cable includes Aluminum and Mylar shielding to help eliminate EMI and RFI interference and maintain signal integrity without any degradation of quality.
This 20-foot DisplayPort cable is both HDCP and DPCP capable, ensuring that digitally protected content is displayed properly on the connected display.
More from the Manufacturer
Packaged Quantity:1 Each
Packing:Bagged
Product Type:Video Cable
Technical Information
Cable Type:DisplayPort
Cable Length:20 ft
Connector Type on First End:DisplayPort Digital Audio/Video - Male
Connector Gender on First End:Male
Connector on First End Details:1 x DisplayPort Digital Audio/Video - Male
Connector Type on Second End:DisplayPort Digital Audio/Video - Male
Connector Gender on Second End:Male
Connector on Second End Details:1 x DisplayPort Digital Audio/Video - Male
Connector Plating:Gold
Conductor:Copper
Shielding:Yes
Jacket Type:CMG
Device Supported:
- Audio/Video Device
- Workstation
- Monitor
- Projector
- Graphics Card
- Notebook
American Wire Gauge:26 AWG
Data Transfer Rate:21.6 Gbit/s
Supported Resolution:4096 x 2160
Features:
- Molded
- HDCP
- DPCP
- EMI/RF Protection
- Latching Connector
- Strain Relief
- Multi-Stream Transport (MST) Support
- EMI Protection
- Fray Resistant
- Damage Resistant
Physical Characteristics
Color Family:Black
Product Color:Black
Product Material:Copper
Jacket Material:Polyvinyl Chloride (PVC)
Weight (Approximate):0.99 lb
Shipping Height:0.98"
Shipping Width:9.84"
Shipping Weight (Approximate):1.18 lb
Miscellaneous
Compatibility:
AMD Graphic Cards
- FirePro S9000
- 7000
- W8100
- 7100
- 5100
- R5000
Certifications & Standards:
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Country of Origin:China
Warranty
Limited Warranty:Lifetime
