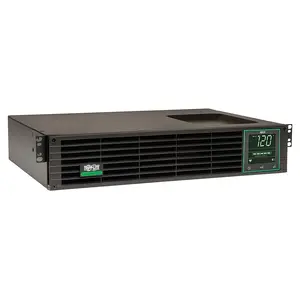

UPS lithium battery backup protects equipment against damage, downtime and data loss due to blackouts, surges and line noise.
- UPC Code: 037332213099
- UPS Type: Line-Interactive
- Input Phase: Single-Phase
- Rated input current (Maximum Load): 9.2A (120V)
- Nominal Input Voltage(s) Supported: 120V AC
- UPS Input Connection Type: 5-15P
- UPS Input Cord Length (ft.): 10
- Recommended Electrical Service: 15A 120V
- Output Capacity (VA): 1000
- Output Capacity (kVA): 1
- Output Capacity (Watts): 800
- Output Capacity (kW): 0.8
- Power Factor: 0.8
- Nominal Voltage Details: 120v nominal output in battery mode
- Frequency Compatibility: 60 Hz
- Output Voltage Regulation (Battery Mode): +/- 5%
- Load Management Receptacles: Two switchable two-outlet load banks
- Output AC Waveform (AC Mode): Pure Sine wave
- Output AC Waveform (Battery Mode): Pure Sine wave
- Nominal Output Voltage(s) Supported: 110V; 115V; 120V
- Output Receptacles: (6) 5-15R
- Individually Controllable Load Banks: Yes
- Battery Type: Lithium Ion
- Runtime Full Load (min.): 8.3 min. (800W)
- Runtime Half Load (min.): 20 min. (400W)
- DC System Voltage (VDC): 24
- Battery Recharge Rate (Included Batteries): 2.7 hours from 10% to 90% (typical)
- Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
- Overvoltage Correction: Input voltages between 127 and 147 are reduced by 12%
- Undervoltage Correction: Input voltages between 83 and 107 are boosted by 12%
- Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
- Switches: 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
- Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
- Audible Alarm: Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
- UPS AC Suppression Joule Rating: 570
- UPS AC Suppression Response Time: Instantaneous
- EMI / RFI AC Noise Suppression: Yes
- Primary Form Factor: Rackmount
- Rack Height: 2U
- Cooling Method: Fan
- Included Mounting Accessory Description: Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
- Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount
- Installation Form Factors Supported with Optional Accessories: 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
- Minimum Required Rack Depth (inches): 16
- Optional Mounting Accessory Notes: Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support
- Primary UPS Depth (mm): 318
- Primary UPS Height (mm): 89
- Primary UPS Width (mm): 441
- Shipping Dimensions (hwd / in.): 8.70 x 18.50 x 23.30
- UPS Housing Material: Steel
- UPS Power Module Dimensions (hwd, in.): 3.5 x 17.35 x 12.5
- UPS Power Module Weight (kg): 7.39
- UPS Power Module Weight (lbs.): 16.3
- Unit Weight (lbs.): 16.300
- Operating Temperature Range: 32? to 104?F (0? to 40?C)
- Storage Temperature Range: 5? to 122?F (-15? to 50?C)
- Relative Humidity: Up to 95%, non-condensing
- AC Mode BTU / Hr. (Full Load): 141
- AC Mode Efficiency Rating (100% Load): 95%
- Audible Noise: 45.5 dBA maximum, front side 1m
- COMMUNICATIONS
- Network Management Cards: WEBCARDLX ; RELAYIOCARD ; SNMPWEBCARD
- Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
- Communications Cable: USB, DB9 and EPO cabling included
- WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Network UPS Tools (NUT) Compatibility: NUT compatible. See a full list of NUT compatible Tripp Lite UPS systems at https://networkupstools.org/stable-hcl.html?manufacturer=Tripp%20Lite
- Network Management Card Description: Network management card optional
- Communications Interface: DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)
- Transfer Time: 4 milliseconds (AC to battery mode), 2 milliseconds (Battery to AC mode)
- Low Voltage Transfer to Battery Power (Setpoint): 83
- High Voltage Transfer to Battery Power (Setpoint): 147
- Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
- High Availability UPS Features: Auto Probe Monitoring and Reboot (requires WEBCARDLX); Automatic Voltage Regulation (AVR); Remote management; Surge/noise protection
- Green Energy-Saving Features: Individually controllable load banks
- Grounding Details: Back panel grounding lug
- UPS Applications: Large Network; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
- Product Certifications: CSA (Canada); NOM (Mexico); UL 1778
- Product Compliance: RoHS; FCC Part 15 Class B (USA)
- Product Warranty Period (Worldwide): 5-year limited warranty
- Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance
