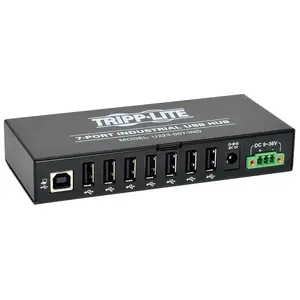

Rugged industrial-grade hub adds 7 USB 2.0 ports to your computer for connecting industrial printers, sensors and other USB devices.
- UPC Code: 037332181428
- Product Type: Hub
- Technology: USB 2.0 (High Speed)
- Country/Region: Global
- Host Connector: USB A (MALE)
- Number of Monitors Supported: 0
- Extended Mode: No
- Mirror Mode: No
- Data Ports: (7) USB A (FEMALE)
- Data Ports Details: (7) USB-A - USB 2.0
- Voltage Compatibility (VAC): 100; 110; 120; 127; 200; 208; 220; 230; 240
- Bus Powered: Yes
- Product Length (in.): 5.59
- Product Length (cm.): 14.2
- Product Length (ft.): 0.465
- Product Length (m.): 0.142
- Power Source Type: 3-Pin Terminal Block
- DC Barrel Plug: OD: 5.5 x 2.1 x 9.5mm, Positive Pin, Negative Sleeve
- Power Consumption (Watts): 2.50
- Color: Black
- Material of Construction: Steel
- Included Mounting Accessories: Yes
- Total Number of Ports: 8
- Shipping Dimensions (hwd / in.): 2.80 x 9.10 x 6.30
- Shipping Weight (lbs.): 1.20
- Unit Dimensions (hwd / in.): 1.000 x 5.500 x 2.500
- Unit Packaging Type: Box
- Unit Weight (lbs.): 1
- Operating Temperature Range: 32? to 140?F (0? to 60?C)
- Storage Temperature Range: 14? to 176?F (-10? to 80?C)
- Relative Humidity: 5% to 95% RH, Non-Condensing
- BTUs: 8.5 BTU/Hr
- Power Provided to Connected Device(s): 5V 0.5A (2.5W) Output per USB Port
- ESD Protection: +-15 kV ESD Immunity
- Number of Ports: 7
- Side A - Connector 1: USB B (FEMALE)
- Side B - Connector 1: (7) USB A (FEMALE)
- Connector Plating: Nickel
- Over Current Protection: Yes
- USB Hub Ports: Yes
- Number of USB Hub Ports: 7
- USB Specification: USB 2.0 (up to 480 Mbps)
- Data Transfer Rate: 480 Mbps
- Driver Required: No
- DIN Mountable: Yes
- Product Compliance: RoHS; CE (Europe); REACH; FCC (USA)
- Product Warranty Period (Worldwide): 2-year limited warranty
