Pre Order
Expected availability: 1-2 weeks
Condition: New

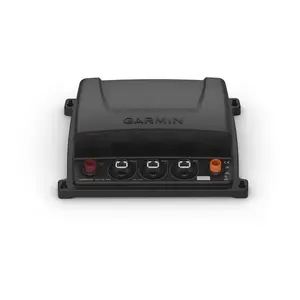

Garmin Ultra High-Definition Scanning Sonar System GCVTM 20 Scanning Sonar Black Box Without Transducer
Model: 010-02055-10Clarity and detail are redefined with the Ultra High-Definition scanning sonar system. Using an easy-to-install, networkable GCV 20 sonar black box with an included three-array GT34UHD transducer, now you can get scanning sonar images in ultra high-definition. You see everything below and off to the sides of your boat in amazingly sharp, crisp detail.
This sonar system provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.
See stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.
You can share your Ultra High-Definition scanning sonar images seamlessly across multiple networked chartplotters. You can also add optional Panoptix all-seeing sonar to your networked sonars.
Specifications| IPX7 | |
| Garmin Marine NetworkTM ports | 3 |
| Temperature range | From 5 degF to 158 degF (from -15 degC to 70 degC) |
| Sonar Features & Specifications | |
| Frequencies supported | Ultra High-Definition ClearVu: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz Ultra High-Definition SideVu: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz |
| Transmit power | 500 W rms |
| Maximum depth | 200 feet Ultra High-Definition ClearVu 125 feet to each side Ultra High-Definition SideVu, 250 feet total |
| Dimensions | 9.9x7.6 inx2.6 in (251 mm x 192 mm x 66 mm) |
Garmin Usa, Inc 010-02055-10 Garmin GCV20 Clearvu/Sidevu Module No Transducer
