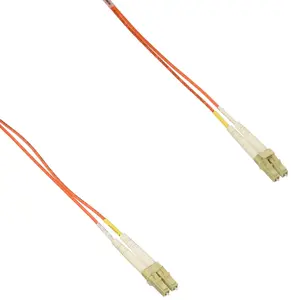

Tripplite N320-30M Tripp Lite, Fiber Patch Cable, Duplex Multimode, 62.5/125, LC, 100FT

This multimode duplex micron fiber optic LC/LC Ethernet cable is manufactured from 62.5/125 zipcord fiber. The cable has LC connectors on each end, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications.

• UPC Code: 037332151674
• Technology: Multimode
• Optical Mode: OM1
• Cable Jacket Color: Orange
• Connector Color: Gray
• Cable Jacket Material: LSZH
• Cable Jacket Rating: OFNR
• Clad Diameter (microns): 125
• Core Diameter (microns): 62.5
• Number of Fibers: 2
• Cable Length (ft.): 98.4
• Cable Length (in.): 1181.1
• Minimum Bend Radius: 20 mm (Dynamic); 10 mm (Static)
• Shipping Dimensions (hwd / in.): 12.00 x 10.50 x 0.50
• Shipping Weight (lbs.): 0.52
• Fiber Cable Length: 30M (98.4 ft)
• Operating Temperature Range: -4? to 140?F (-20? to 60?C)
• Storage Temperature Range: -4? to 140?F (-20? to 60?C)
• Operating Humidity Range: 5% to 85% RH, Non-Condensing
• Storage Humidity Range: 35% to 65% RH, Non-Condensing
• Network Compatibility: 1 Gbps (Gigabit); 10 Gbps
• Attenuation @ 850NM: 3.0 dB/km
• Insertion Loss: ≤ 0.20 dB
• Side A - Connector 1: LC DUPLEX (MALE)
• Side B - Connector 1: LC DUPLEX (MALE)
• Endface Polish: PC
• Product Compliance: RoHS; REACH
• Product Warranty Period (Worldwide): Lifetime limited warranty
