General Information
Manufacturer:StarTech.com
Manufacturer Part Number:ST1000SPEXI
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

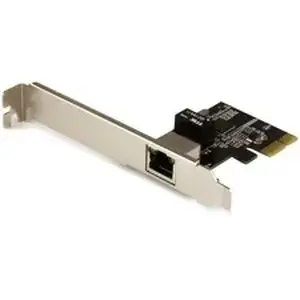

Product Name:1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC
Marketing Information:Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot. This GbE (Gigabit Ethernet) network card makes it easy to create a highperformance, cost-effective networking solution.
The performance and reliability you demand in network connectivityThis Gigabit Ethernet network card utilizes the Intel® I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
A versatile and cost-effective solutionCompatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking. It's a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.
Easy installationWith a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed.
The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
Packaged Quantity:1 Each
Product Type:Gigabit Ethernet Card
Technical Information
Chipset Manufacturer:Intel
Chipset Model:I210-AT
Interfaces/Ports
Host Interface:PCI Express x4
Total Number of Ports:1
Number of Network (RJ-45) Ports:1
Media & Performance
Media Type Supported:Twisted Pair
Maximum Data Transfer Rate:1.95 Gbit/s
Network & Communication
Network Technology:10/100/1000Base-T
Physical Characteristics
Color Family:Black
Product Color:Black
Form Factor:Plug-in Card
Height:0.7"
Width:2.6"
Depth:2.7"
Weight (Approximate):1.30 oz
Miscellaneous
Package Contents:
- 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC
- 1 x Low Profile Bracket
- 1 x Instruction Manual
Device Supported:Computer
Platform Supported:
System Requirements:
- Windows® 7, 8, 8.1, 10
- Windows Server® 2008 R2, 2012 R2, 2016, 2019
- Linux 2.4.x to 4.11.x LTS versions only
Environmentally Friendly:Yes
Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:China
Warranty
Limited Warranty:2 Year
