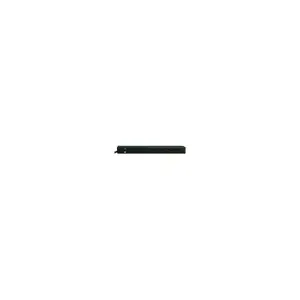

Local metered single phase 20A 120V PDU
- UPC Code: 037332142504
- PDU Type: Local Metered
- Input Phase: Single-Phase
- PDU Input Voltage: 120
- Recommended Electrical Service: Single-phase 20A 120V service
- Maximum Input Amps: 20
- PDU Plug Type: NEMA 5-20P; NEMA L5-20P
- Input Cord Length (ft.): 15
- Output Capacity Details: 2.4kW (120V) / 20A total capacity; 16A max per outlet
- Frequency Compatibility: 50 / 60 Hz
- Output Receptacles: (12) 5-15/20R
- Output Nominal Voltage: 120V
- Overload Protection: 20A circuit breaker
- Front Panel LCD Display: Digital display reports total PDU output current in amps
- Material of Construction: Metal
- Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
- Minimum Required Rack Depth (inches): 9.5
- Outlets Measurement (Center to Center): 30.20mm
- PDU Form Factor: Horizontal (1U)
- Shipping Dimensions (hwd / in.): 9.20 x 2.25 x 20.40
- Shipping Weight (lbs.): 6.40
- Unit Dimensions (hwd / in.): 2.000 x 20.000 x 4.500
- Unit Weight (lbs.): 3
- Operating Temperature Range: 32? to 104?F (0? to 40?C)
- Storage Temperature Range: -22? to 122?F (-30? to 50?C)
- Relative Humidity: 5% to 95% non-condensing
- Operating Elevation (ft.): 0-10,000
- Operating Elevation (m): 0-3000
- Grounding: Back panel grounding lug
- Product Certifications: RETIE (Colombia); NOM (Mexico); UL 60950-1
- Product Compliance: RoHS
- Product Warranty Period (Worldwide): 2-year limited warranty
