General Information
Manufacturer:StarTech.com
Manufacturer Part Number:JD089BST
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

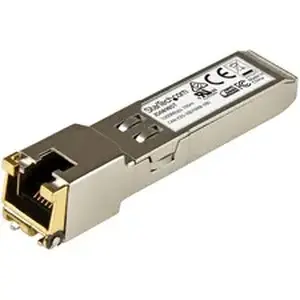

Product Name:HP JD089B Compatible SFP Transceiver Module - 10/100/1000BASE-TX
Marketing Information:The JD089BST is an HP JD089B compatible copper transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications: - Maximum Data Transfer Rate: 1000 Mbps
- Type: Copper
- Connection Type: RJ45 Connector
- Maximum Transfer Distance: 100 m (328 ft)
- MTBF: 4,655,371 hours
- Power Consumption: Less than 1.3 Watts
- Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
Packaged Quantity:1 Each
Product Type:SFP (mini-GBIC)
Technical Information
Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
Total Number of Ports:1
Connector Type:RJ-45
Interfaces/Ports Details:1 x RJ-45 10/100/1000Base-T Network LAN
Media & Performance
Media Type Supported:Twisted Pair
Ethernet Technology:1.25 Gigabit Ethernet
Network Technology:10/100/1000Base-T
Physical Characteristics
Form Factor:
- Hot-pluggable
- Hot-swappable
Height:0.5"
Width:0.5"
Depth:2.7"
Weight (Approximate):0.06 lb
Miscellaneous
Compatibility:
HPE Switches: - 5820AF
- 12500
- 5500
- E4800
- E4500
Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:Lifetime
