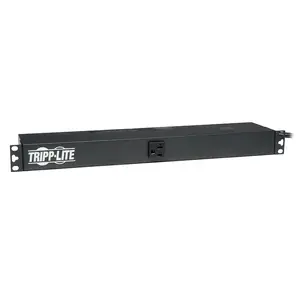

Tripplite PDU1220 EATON, PDU BASIC 120V, 20A 5-15/20R 13 OUTLET, 5-20P HORIZONTAL 1URM

The PDU1220 2.4kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU1220 features a single breakered load bank with 13 NEMA 5-15/20R outlets--12 in the rear and one in front. The NEMA 5-20P input plug with long 15-foot (4.6-meter) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment.The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and a PDUSIDEBRKT accessory (sold separately), you can adapt the PDU1220 for vertical 0U rack-mounting.

• UPC Code: 037332116673
• PDU Type: Basic
• Input Phase: Single-Phase
• PDU Input Voltage: 120
• Recommended Electrical Service: Single-phase 20A 120V service
• Maximum Input Amps: 20
• PDU Plug Type: NEMA 5-20P
• Input Cord Length (ft.): 15
• Output Capacity Details: 2.4kW (120V) / 20A total capacity; 16A max per 5-15/20R outlet
• Frequency Compatibility: 50 / 60 Hz
• Output Receptacles: (13) 5-15/20R
• Output Nominal Voltage: 120V
• Overload Protection: 20A circuit breaker
• Switches: No power switch
• Material of Construction: Metal
• Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
• Minimum Required Rack Depth (inches): 9.5
• Outlets Measurement (Center to Center): 30.2mm
• PDU Form Factor: Horizontal (1U)
• Shipping Dimensions (hwd / in.): 2.20 x 20.40 x 9.30
• Shipping Weight (lbs.): 5.70
• Unit Dimensions (hwd / in.): 2.000 x 19.000 x 4.500
• Unit Weight (lbs.): 5.2
• Operating Temperature Range: 32? to 104?F (0? to 40?C)
• Storage Temperature Range: -22? to 122?F (-30? to 50?C)
• Relative Humidity: 5% to 95% non-condensing
• Operating Elevation (ft.): 0-10,000
• Operating Elevation (m): 0-3000
• Grounding: Grounding lug
• Product Certifications: RETIE (Colombia); CAN/CSA-22.2 No. 308-14 (Canada); NOM (Mexico); UL 1363
• Product Compliance: RoHS
• Product Warranty Period (Worldwide): 5-year limited warranty
